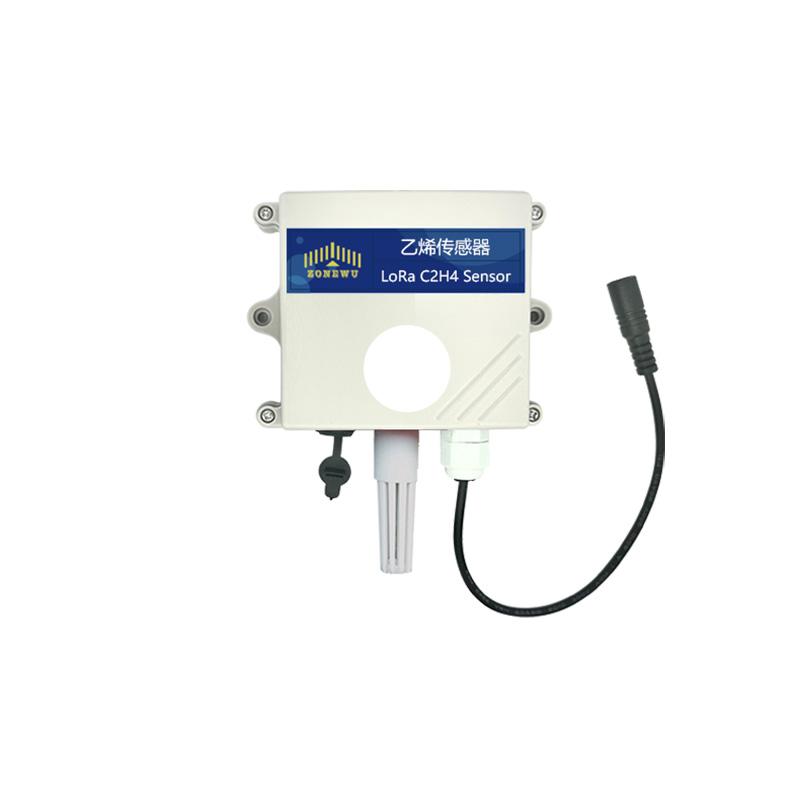

Industrial LoRaWAN Ethylene Temperature and C2H4 Humidity sensor


  • The LoRa wireless ethylene (ethylene) sensor is a wireless Internet of Things sensor used for monitoring ethylene gas. Upper and lower limit thresholds can be preset according to the environment, and abnormal data can be actively reported. It is widely applied in fields such as industrial safety, agricultural production, and environmental protection.




  • Model No.:

    LW304D-C2H4

  • Use:

    Nitric oxide monitoring

  • Power Supply:

    5~28VDC

  • LoRaWAN Mode:

    OTAA Class A/C (Default: Class C)

  • Shell Material:

    ABS

  • Certificates:

    CE,ROHS

  • Customized Support:

    OEM, ODM

  • Warranty:

    1 Year
Inquire now
  • Product Detail


  • Industrial Ethylene  gas sensor and C2H4 detector sensor

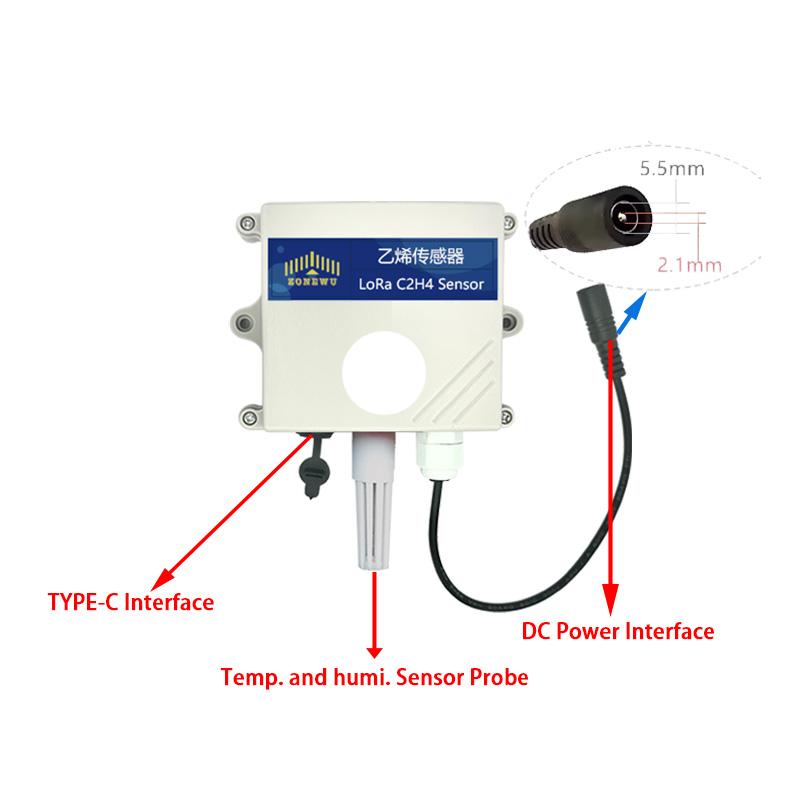

This LoRaWAN ethylene sensor is a gas monitoring device based on LoRa wireless technology. Its function is to measure the ethylene concentration, temperature and humidity in the environment in real time. The core configuration features an integrated high-performance ethylene sensor and a temperature and humidity sensor.


This Ethylene gas sensor equipment has obvious advantages:
Precise measurement
Stable performance
Low energy consumption

This Ethylene sensor is suitable for long-term use.
In terms of data transmission, it follows the standard LoRaWAN protocol, does not require wiring, and can realize long-distance data transmission.



C2H4 Sensor Specification:

Power Supply 5~28VDC
 LW304D-C2H4 Weight 120g
Usage Environment
Temperature: -20℃～50℃

Humidity: 15%~ 90% RH without condensation

NOTE:It is not recommended to stay in a high humidity environment for more than half a month

Measuring Principle
Electrochemical Principle
Measuring Range
C2H4: 0～100 ppm
Resolution and Accuracy
C2H4: 0.1 ppm, 10%
Temp.and Humi. Sensor
Temp Range:-40~+80 ℃
Accuracy:±0.3 ℃
Humi Range:0~99.9 %RH
Accuracy:±2 %RH
Sensor Lifespan
<2 years
Frequency
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode OTAA Class A/C(Default: Class C)
Reporting cycle
5 min(Default reporting cycle)
Communication Protocol LoRaWAN,LoRa TDMA Networking
Equipment information
(Reference)
AppEUI：0000000000000001
DevEUI：aaaa202404150001
AppKey：00001111222233334444555566667777
MAC Version：LoRaWAN 1.0.3
Warranty Period
1 year


Packaging:

Single gross weight: 0.600KG

Single package size:  23x20x5 cm


Application:

The High C2H4 precision  gas sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.

applications of CO gas sensor



Certifications:

We are best gas sensor manufacturer and exporter in China with more than 10 years. Our Ethylene gas sensor products are certified  with of CE, ROHS.



Production Process:


factory of CO gas sensor manufacturer



Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
