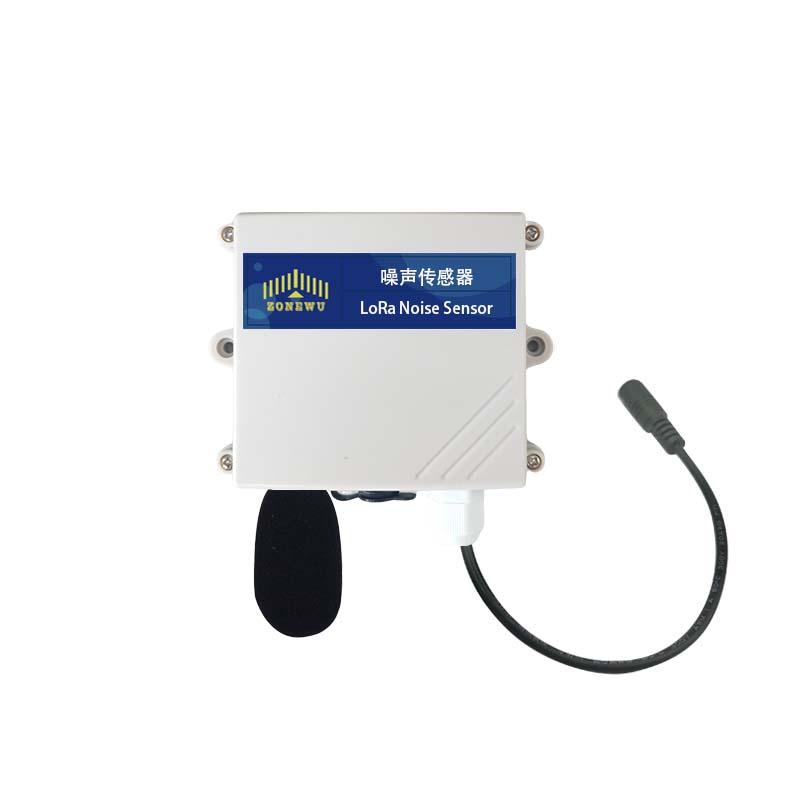

Waterproof long distance LoRaWAN Noise Sensor

The LoRaWAN noise sensor is a high-precision sound meter with a range of 30dB to130dB, meeting daily measurement needs. It is widely used in various fields such as home, office, workshop, automotive, and industrial measurements.
  • Model No.:

    LW507-NS
  • Use:

    Monitor noise​
  • Power Supply:

    Battery or External DC
  • LoRaWAN Mode:

    OTAA Class A/C
  • Shell Material:

    ABS
  • Certificates:

    CE,ROHS
  • Customized Support:

    OEM,ODM
  • Warranty:

    1 Year
  • Product Detail

Waterproof long distance LoRaWAN Noise Sensor


The LoRaWAN noise sensor is a high-precision sound meter with a range of 30dB to 130dB, meeting daily measurement needs. It is widely used in various fields such as home, office, workshop, automotive, and industrial measurements.

This product adopts high sensitivity capacitive microphone, signal is stable, high accuracy. It has the characteristics of wide measurement range, good linearity, easy to use, easy to install, long transmission distance.

LoRaWAN noise sensor for industrial park, specially designed for industrial noise monitoring and environmental compliance! For scenarios such as factory workshops, equipment rooms, and factory boundaries, relying on LoRaWAN's low power consumption and long-distance transmission advantages, we accurately collect noise decibel values from mechanical operation and production operations 24 hours a day, and upload them in real-time to the smart environmental protection platform.


LoRaWAN Noise Sensor Specification:


Power Specifications
Rated Voltage:12VDC,Scope:DC5~28V
Rated input current: 500mA

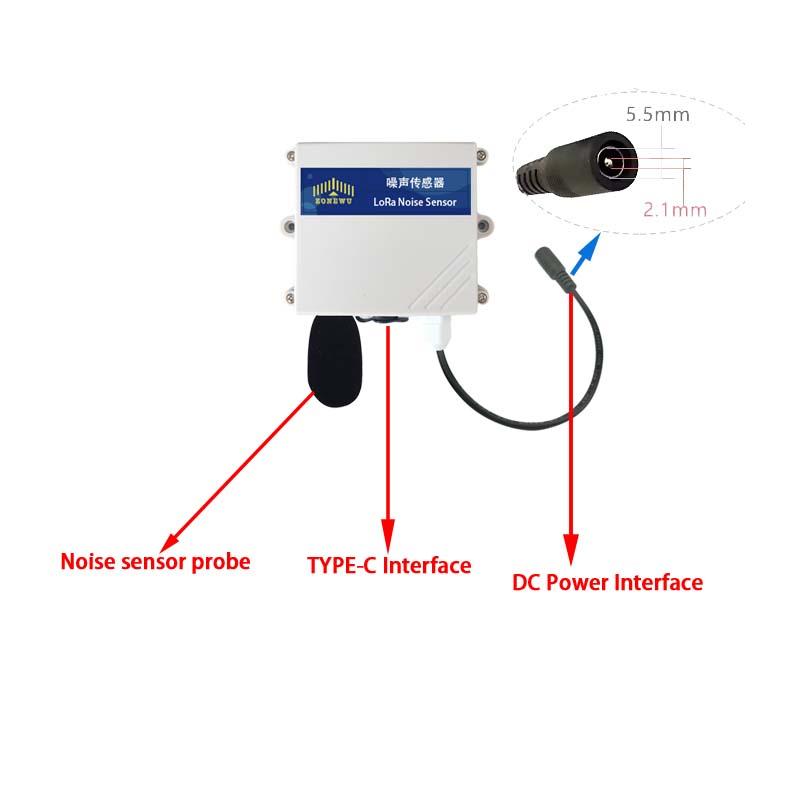

Interface specification: DC 5.5mm × 2.1mm(positive inside and negative outside)
LW507-NS Weight
150g
Noise Sensor
Range: 30dB~130dB
Resolution: 0.1dB
Frequency range: 20Hz~12.5kHz
Frequency
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode
OTAA Class A/C(Default: Class C)
Reporting cycle
5 min(Default reporting cycle)
Communication Protocol
LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)


AppEUI:0000000000000001
DevEUI:aaaa202404150001
AppKey:00001111222233334444555566667777
MAC Version:LoRaWAN 1.0.3
Warranty Period
1 year

Packaging:

Single gross weight:  1.200KG

Single package size: 37x26x5 cm


Product Description:





Application:


Solar residual chlorine(CL) sensors are widely used in outdoor scenarios such as aquaculture, drinking water disinfection, and sewage treatment to monitor residual chlorine concentration in real-time and ensure water quality safety. With solar power supply and wireless transmission characteristics, it is particularly suitable for long-term monitoring needs in remote areas and environments without mains power.

applications of versatile Residual Chlorine Sensor



Certifications:

We are best solar water quality residual chlorine(CL) sensor manufacturer and exporter in China with more than 10 years. Our solar water residual chlorine(CL) sensor products are certified  with of CE, ROHS.



Production Process:



factory of water ec sensor manufacturer



Why choose us:


1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
