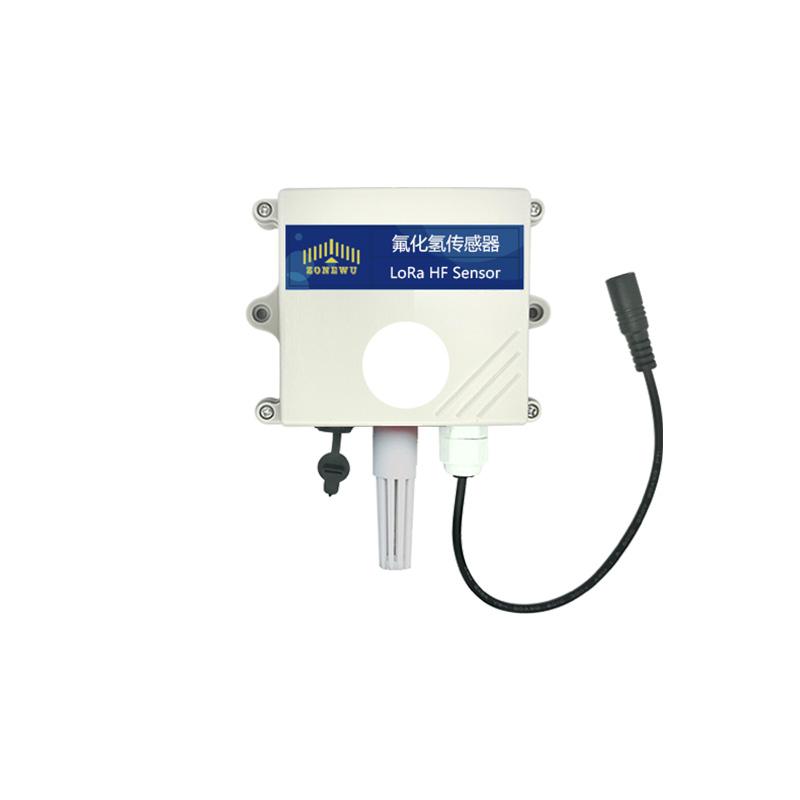

Industrial LoRaWAN HF Sensor | Wireless Hydrogen Fluoride Monitor with Real-Time Data

Industrial LoRaWAN HF Sensor | Wireless Hydrogen Fluoride Monitor with Real-Time Data

LoRaWAN hydrogen fluoride (HF) sensor is an IoT wireless device developed based on LoRa technology, integrating a high-sensitivity HF sensor and precision temperature and humidity sensor. It uses electrochemical principles for real-time monitoring of HF concentration, temperature and humidity, solving the drawbacks of traditional wired sensors (high installation cost, limited deployment, difficult maintenance) and serving as a core tool for modern HF safety monitoring.

Core Technical Advantages

The sensor’s excellent performance relies on optimized design, with three key advantages:

1. High Detection Accuracy

Equipped with a dedicated electrochemical HF probe, it avoids interference from other gases. With high-precision data calibration, the HF measurement error is within ±2% FS, and the detection range is adjustable (0-10/50/100 ppm) to meet most scenario needs. Real-time temperature and humidity compensation further ensures data reliability.

2. Stable LoRaWAN Wireless Communication

Supporting LoRaWAN protocol, it features long communication distance (3-5km outdoor, 500-1000m in industrial environments), ultra-low power consumption (2-5 years of continuous work with built-in lithium battery), and strong anti-interference ability, ensuring stable data transmission without loss.

3. Integrated & Easy to Use

The integrated design combines HF, temperature and humidity detection in one device, with simple installation and maintenance. It is widely applied in environmental monitoring, industrial emission detection, chemical plants and other scenarios.

Why Choose Our HF Sensor?

• 1.Ultra-Precise MeasurementDedicated electrochemical sensor core with anti-interference technology. Accurately measures HF concentrations from 0 to 1000ppm, with 0.1ppm resolution—ensures no missed leak risks.

• 2.Long-Lasting & Low MaintenanceCorrosion-proof design, drift-free for months, and IP65 dust/waterproof. Battery-powered for 2–5 years—cuts wiring and maintenance costs drastically.

• 3.LoRaWAN Long-Range ConnectivityTransmit data up to 10km wirelessly. Easy to deploy hundreds of nodes in large factories/parks. Compatible with global LoRaWAN networks and cloud platforms.

• 4.Industrial-Grade ReliabilityWorks stably in -20℃~60℃ wide temperature range. Supports remote calibration and alarm—ideal for 24/7 continuous operation.

Package & Service

• High-precision HF sensor module
• LoRaWAN communication module
• Power adapter/battery pack
• User manual & calibration certificate
• 1-year warranty + technical support

HF Sensor Specification:

Packaging:

Single gross weight: 0.600 KG

Single package size: 23X20X5 cm

Application:

The high-precision HF gas sensor boasts wide-ranging applicability, and is extensively deployed for gas monitoring in the following scenarios:

1.Chemical production facilities

2.Hospital ward environments

3.Vegetable greenhouses

4.Livestock and poultry breeding farms

5.Tunnel construction and operation sites

6.Cold chain logistics vehicles

7.Cold storage warehouses

8.Biosafety laboratories

Certifications:

1.We are a leading gas sensor manufacturer and exporter in China, with over 10 years of professional experience in the industry.

2.Our HF gas sensor products have obtained CE and ROHS certifications, fully meeting international quality and environmental standards.

3.We adopt advanced production technology and strict quality control systems to ensure the high precision, stability and reliability of each HF gas sensor.

4.Our HF gas detection solutions are widely applicable to multiple scenarios, including industrial safety monitoring, indoor air quality management and automotive emission testing.

5.Backed by a professional R&D team and comprehensive after-sales service, we have built long-term cooperative relationships with clients from Europe, Asia, the Americas and other regions.
