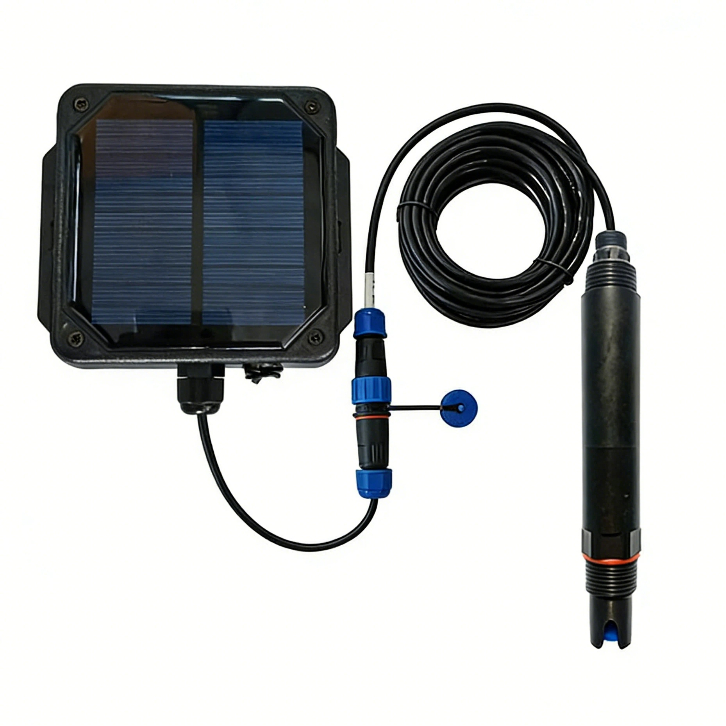

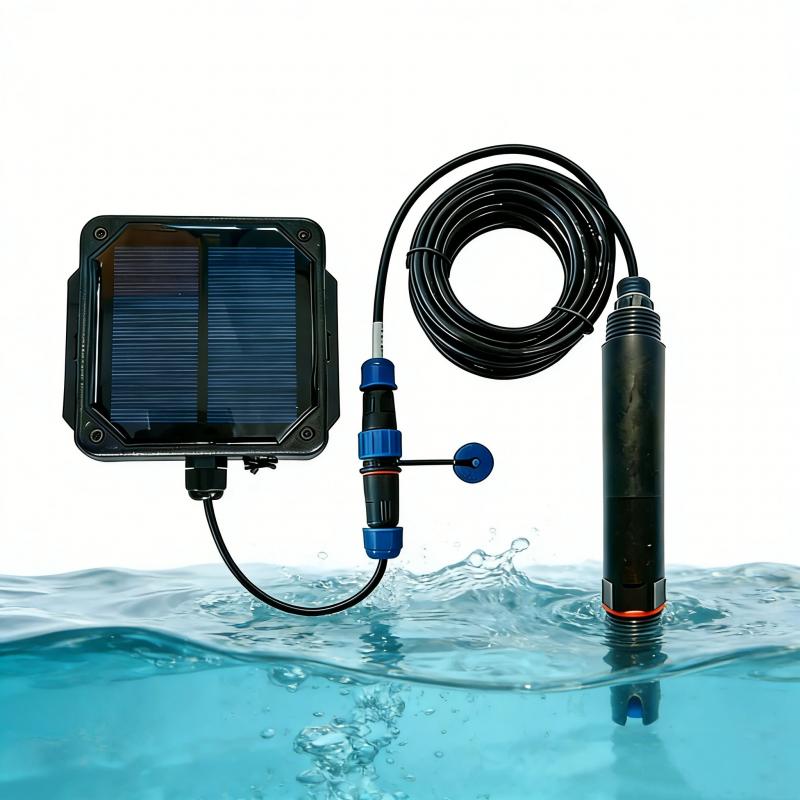

LoRaWAN solar water quality magnesium ion sensor is a wireless sensor used to measure the concentration of magnesium ions in water. It is a wireless water quality monitoring device designed specifically for outdoor scenarios and can operate without connecting to mains power. It has the characteristics of automatic temperature compensation, low environmental impact, and high measurement accuracy. Wireless communication is achieved through the connection of aviation connectors and LoRaWAN collectors, which are widely used in the online automatic continuous analysis and detection of ions in industrial wastewater, surface water, drinking water, and seawater, as well as industrial production process control.
Model No.:
LW110S-Mg2+Use:
Monitor Magnesium Ion contentPower Supply:
Solar Powered + Li-ion BatteryLoRaWAN Mode:
OTAA Class A/CCertificates:
CE,ROHS,FCC,ISO and 11 patents certificationsCustomized Support:
OEM, ODMWarranty:
1 YearSolar Powered LoRaWAN Magnesium Ion Sensor for Water Quality Monitoring

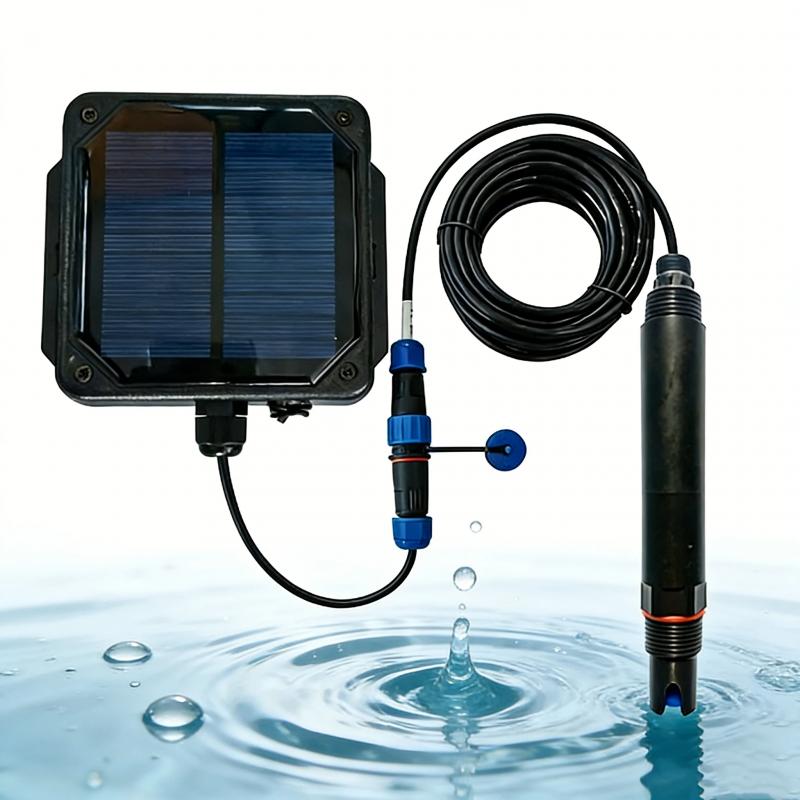

The LoRaWAN solar water quality magnesium ion sensor is a professional wireless monitoring device, specifically developed to accurately measure magnesium ion concentration in various water bodies, with strong adaptability to outdoor scenarios and reliable performance.
Core Features & Functions
Core Purpose: Specialized in measuring magnesium ion concentration in water, providing accurate and real-time data support for water quality monitoring.
Power Supply Mode: Solar-powered design, no need to connect to mains power, suitable for long-term outdoor operation without power supply constraints.
Performance Advantages: Equipped with automatic temperature compensation, featuring low environmental interference and high measurement accuracy to ensure stable data output.
Wireless Communication: Realizes wireless data transmission through aviation connectors and LoRaWAN collectors, simple to install and convenient to use.
Application Scenarios
It is widely applied in online automatic continuous analysis and detection of magnesium ions in industrial wastewater, surface water, drinking water and seawater, as well as in the control of industrial production processes.
With its solar-powered convenience, LoRaWAN wireless transmission and high-precision measurement, this sensor effectively solves the pain points of outdoor water quality magnesium ion monitoring, becoming a reliable choice for water quality management in various fields.
|
Power Supply |
Solar Powered + Li-ion Battery （0.88W solar panel+3.7V/3400 mAh Li-ion battery） |
|
|
LW110S Weight |
230g |
|
|
Range and Resolution |
0～1000.0mg/L |
0.1mg/L,0.1℃ |
|
Accuracy |
Read the numbers± 10% or ± 1mg/L of reading, ± 0.5 ℃ |
|
|
Minimum Detection Limit |
0.1 |
|
|
Temperature Compensation |
Automatic temperature compensation (Pt1000) |
|
|
Working Conditions |
0～40℃，≤0.2MPa，pH：4～10 |
|
|
Electrode Usage Cycle |
1 year |
|
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
|
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
|
Mode |
OTAA Class A(Default )/C |
|
|
Reporting cycle |
30min(Default ) |
|
|
Battery Life |
≥3 years（Based on normal use conditions） Note: Due to the high power consumption of ion sensor, it is not recommended to use short cycle data reporting. |
|
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
|
Equipment information (Reference) |
AppEUI：331341E186891989 DevEUI：aaaa202404150001 AppKey：5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
|
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm

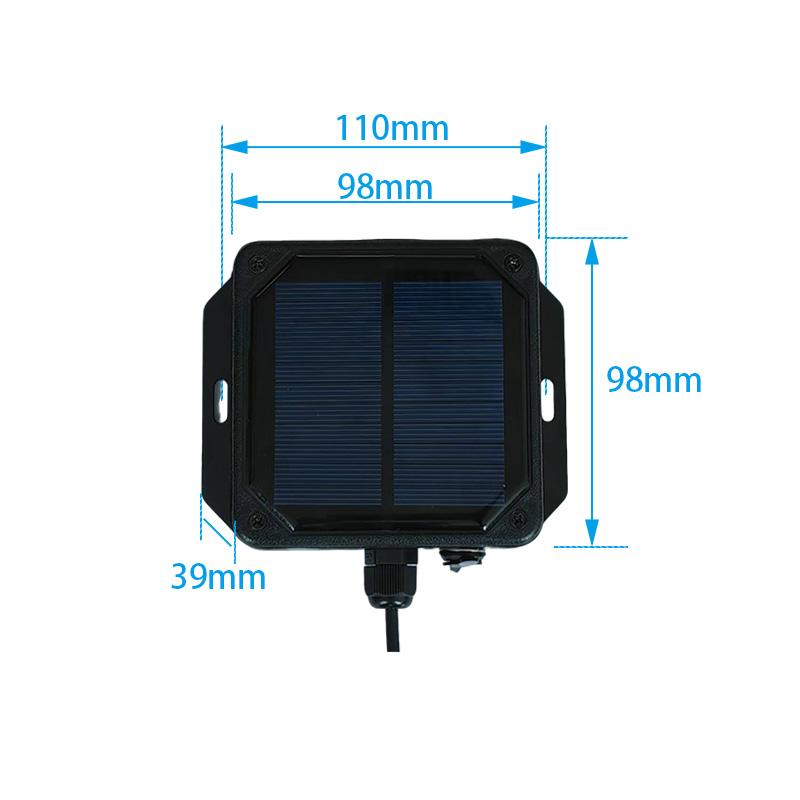

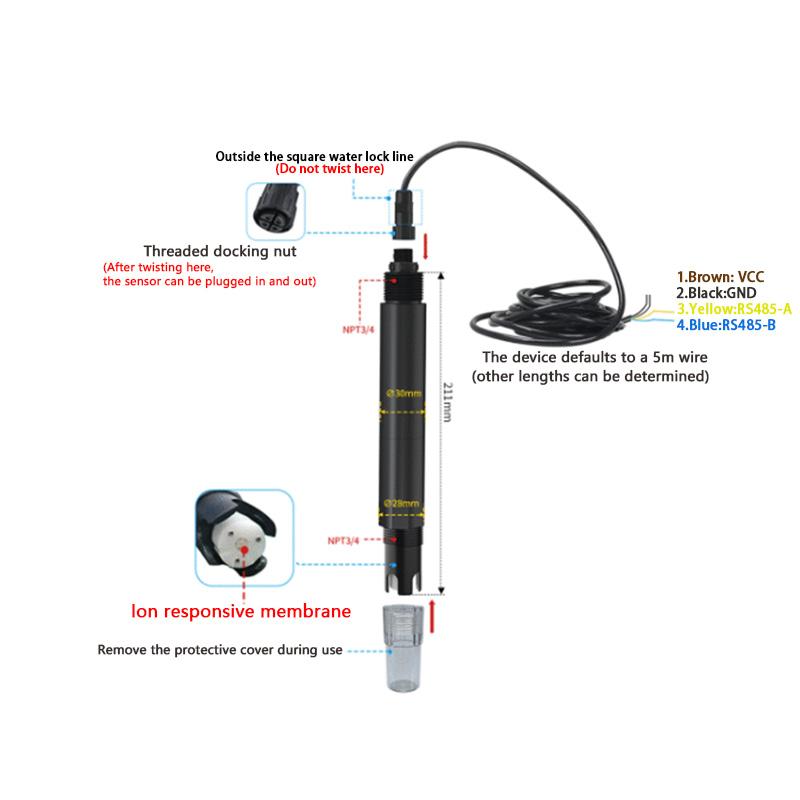

Product Description:
Customer on-site examples:
Application:
The solar-powered LoRaWAN magnesium ion water quality sensor is a wireless sensor designed to monitor magnesium ion concentration in water. As a specialized water quality monitoring device, it supports long-term, maintenance-free online tracking of magnesium levels—ideal for scenarios (e.g., industrial water treatment, agriculture, aquaculture) where magnesium ion stability directly impacts equipment anti-scale performance, crop nutrient uptake, and aquatic organism osmoregulation.
Certifications：
We are the best water quality solar-powered LoRaWAN magnesium ion sensor manufacturer and exporter in China with more than 10 years of experience. Our solar-powered LoRaWAN magnesium ion sensor products are certified with CE and RoHS.
Why LoRaWAN for Magnesium Ion Monitoring?
Remote & Real-Time Data：Transmit data over long distances (up to 10+ km in rural areas) without wiring, ideal for large-scale or hard-to-reach locations (e.g., remote farms, offshore aquaculture).
Low Power Consumption: Solar-powered sensors ensure long-term stable operation, effectively reducing maintenance costs and downtime.
Integrate with LoRaWAN gateways and cloud platforms (e.g., AWS IoT, Azure IoT) to monitor hundreds of sensors simultaneously—suitable for enterprise-level applications.Cost-Effective：Eliminates manual sampling and labor costs, enabling proactive maintenance and compliance.
Production Process:
