Model No.:
LW105-TBUse:
Measure Turbidity of waterMeasuring Accuracy:
Battery or External DCLoRaWAN Mode:
OTAA Class AShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:
1 Year

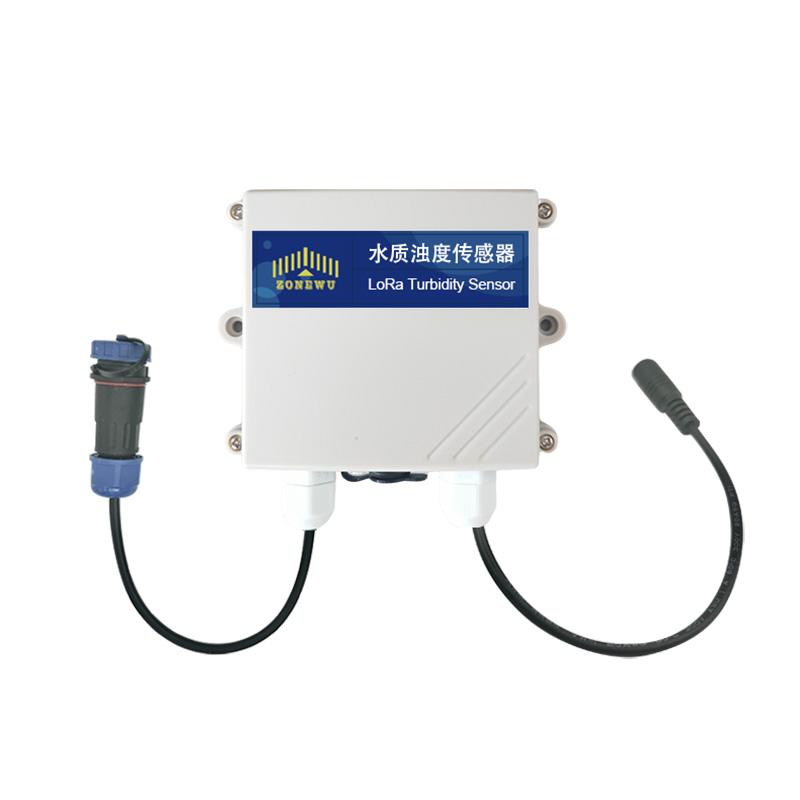

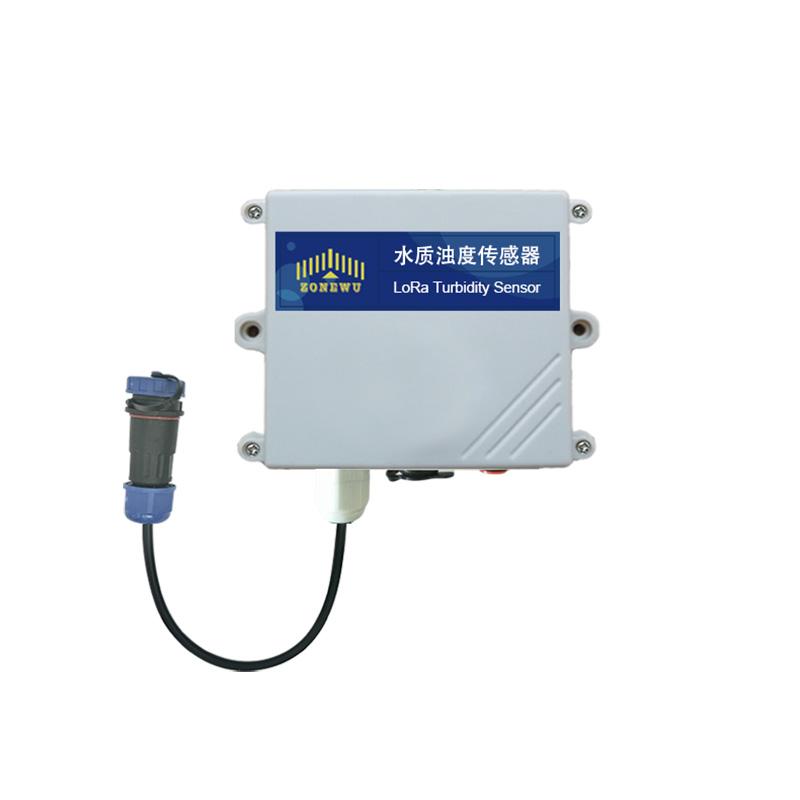

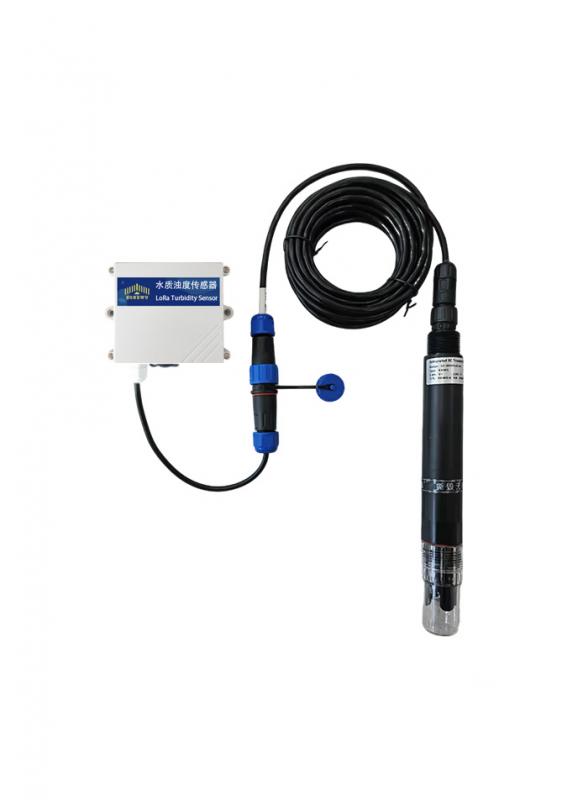

Stable Wireless LoRaWAN Water Quality Turbidity Sensor

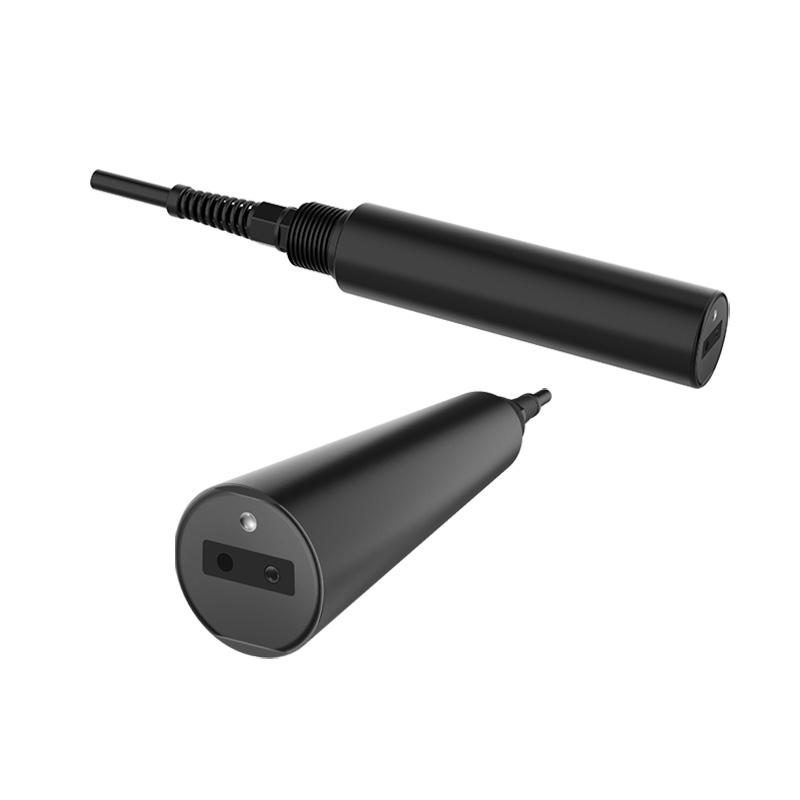

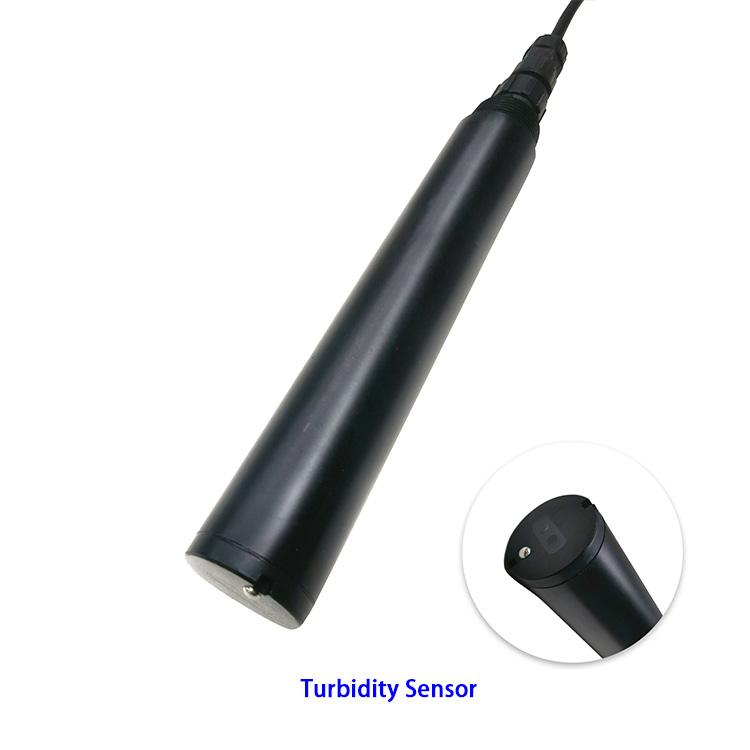

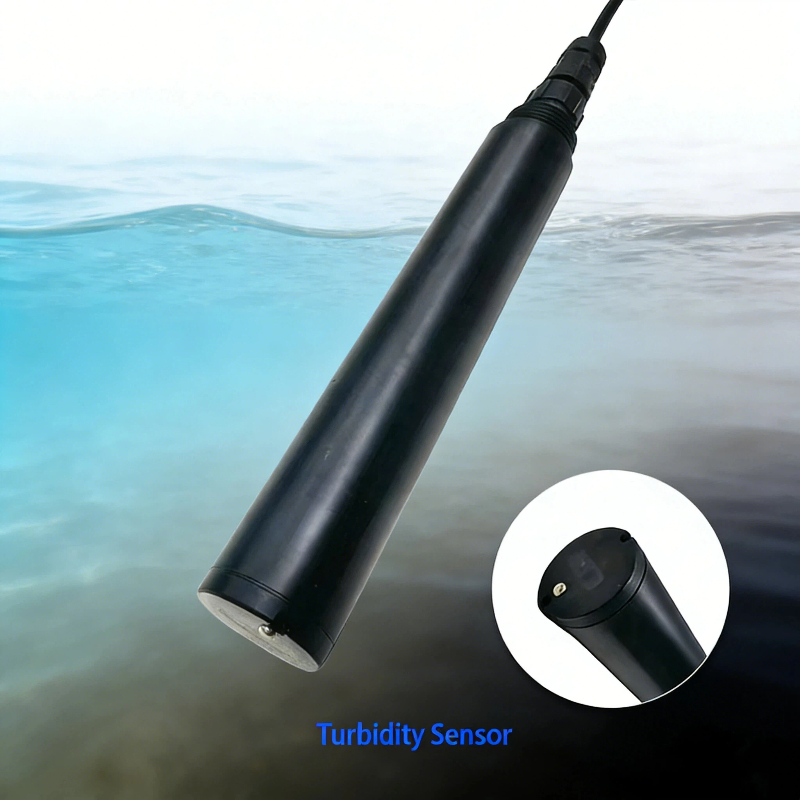

LoRaWAN water quality turbidity sensor is a basic conventional water quality monitoring digital turbidity transmitter, which adopts the 90 ° scattered light principle, uses infrared LED as the light source, conducts the light path through optical fiber, has built-in filtering algorithm, and has strong resistance to external light interference; Equipped with a temperature transmitter, it can automatically compensate for temperature and is suitable for long-term online monitoring.

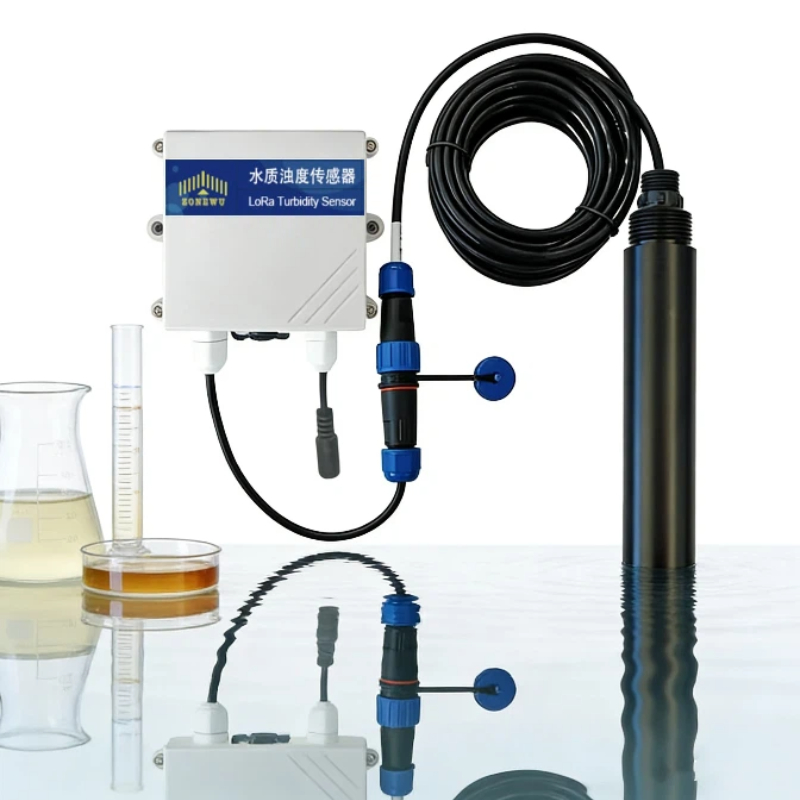

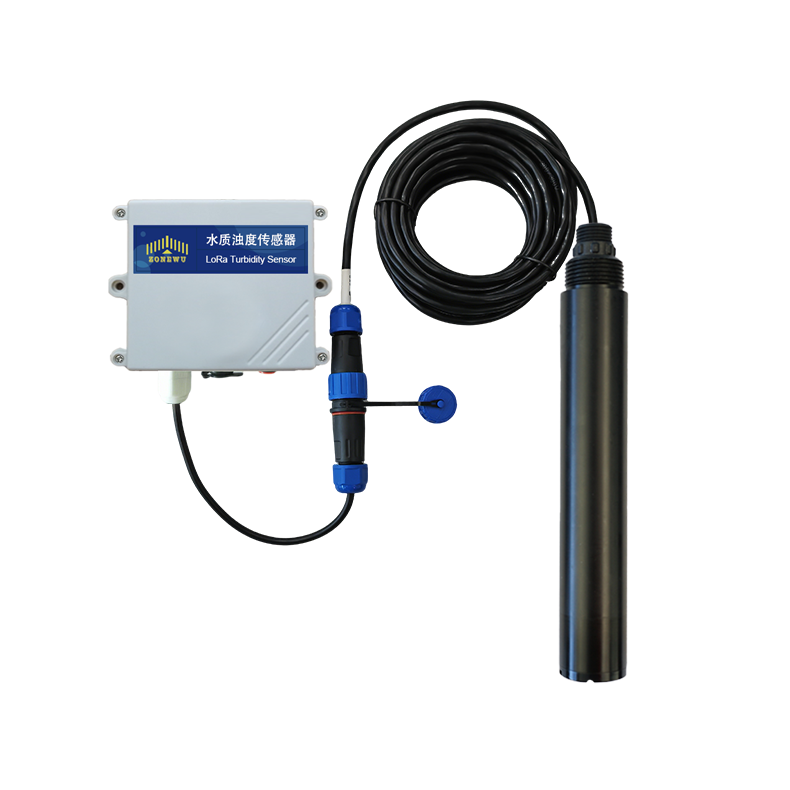

The accompanying LoRaWAN collector supports the standard LoRaWAN protocol and can be connected to the residual chlorine transmitter through an aviation connector for use.
Water Quality Turbidity Sensor Specification:
Power Supply | ER26500 Li-SOCl2 8500 mAh battery,3.6V | |
Unit weight with probe | 200g | |
Operating Temperature | 0~+40°C | |
Measuring Range |
0.00~50.00NTU 0.0~200.0NTU 0.0~1000.0NTU(Default ) 0~4000NTU |
|
Measurement Error | ±5%FS(25℃) | |
Resolution Ratio | 0.01PH | |
Temperature measurement range |
0~40℃,Resolution Ratio:0.1℃ (When manually compensating for temperature, it is set to 25 ℃ by default.) |
|
Electrode Life | Normal use for 2 year | |
Pressure Resistance | 0.6MPa | |
EC Transmitter Line length |
Default 5m (other lengths can be customized) | |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A | |
Reporting cycle | 60min(Default ) | |
Battery Life | ≤3 years (Depending on the reporting cycle) | |
Note: Due to the high power consumption of EC sensor, it is not recommended to use short cycle data reporting. | ||
Communication Protocol | LoRaWAN,LoRa TDMA Networking | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 25X22X11cm
Application:
This electrical conductivity sensor is widely used to ensure safety and quality in diverse applications including aquaculture, marine monitoring, drinking water treatment, swimming pool operations, river/stream monitoring, wastewater treatment, chemical industrial parks, and farmland irrigation.
Certifications
We are best water quality EC sensor manufacturer and exporter in China with more than 10 years. Our water ec sensor products are certified with of CE, ROHS.
