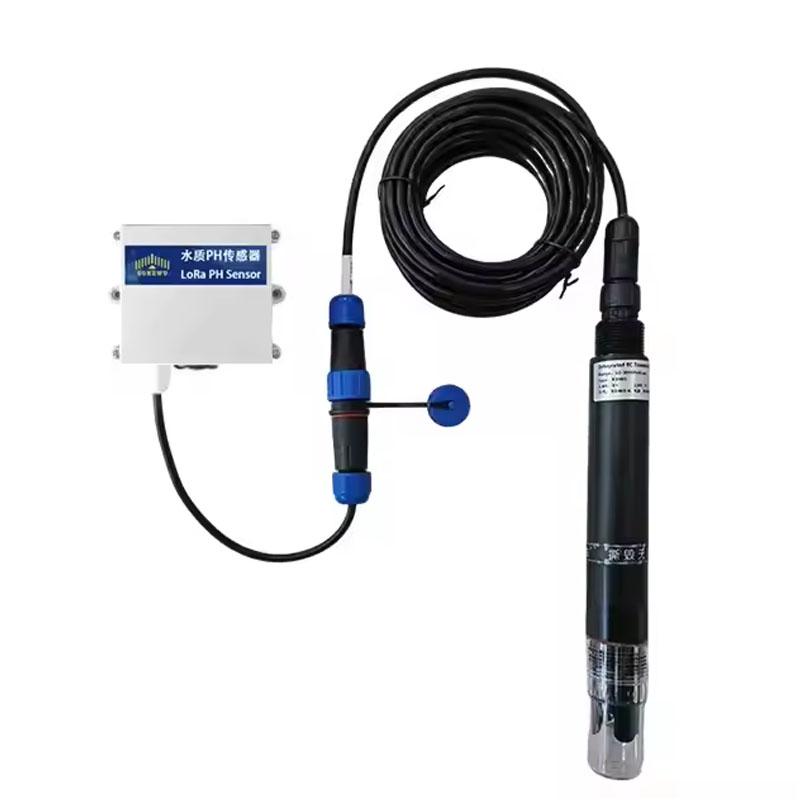

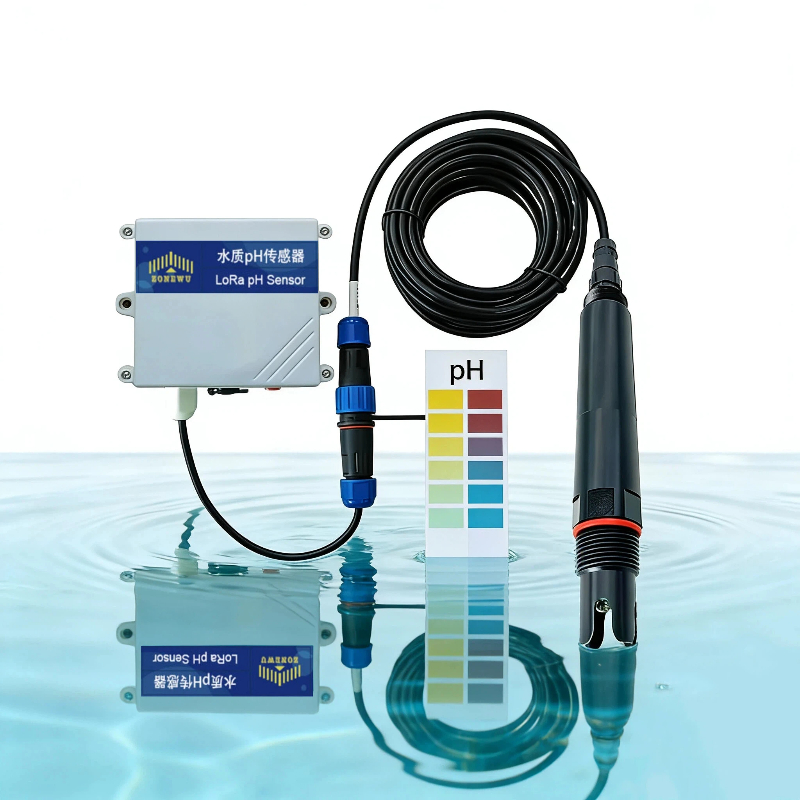

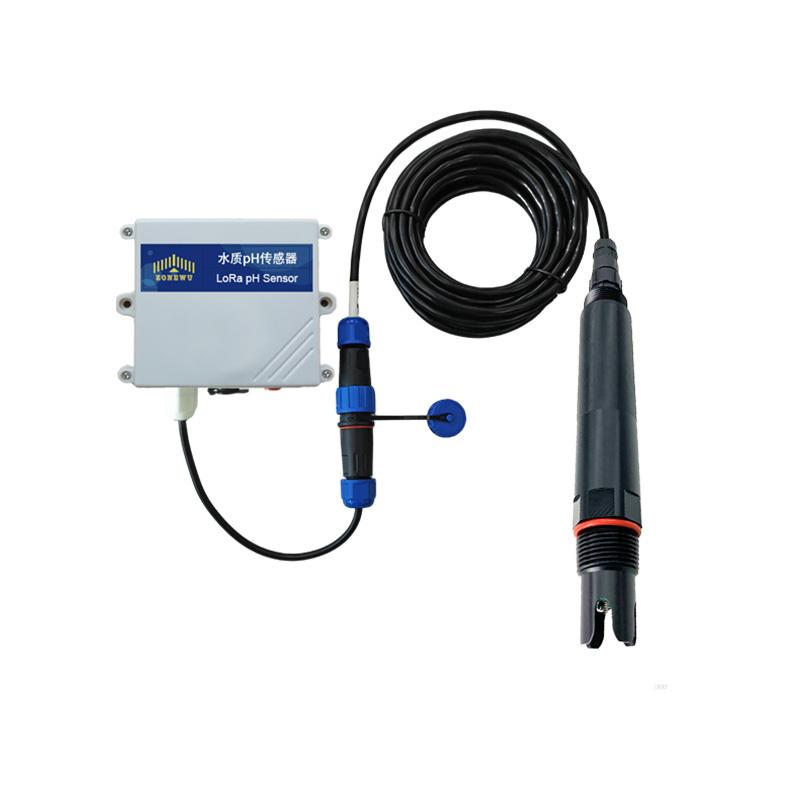

ZoneWu LoRaWAN water quality pH sensor ranging from 0 to 14. Operating Temperature in 0~40℃. Widely used in various water quality pH value tests, especially industrial water quality tests, with high stability and accurate measurement.
OEM & ODM service is accepted.
Model No.:
LW102D-PHUse:
Water ph monitoringPower Supply:
Battery or External DCLoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM, ODMWarranty:
1 YearDurable Digital industrial PH Sensor for Water Quality Monitoring
ZoneWu water ph monitoring system is based on LoRa communication, Supports TDMA ad hoc networks, with the ability to collect 240 nodes on the same network. The gateway supports 4G Ethernet, and wired RS485 reporting to the loT platform.
This digital ph sensor supports MQTT/TCP/UDP/ModBusRTU/ModBusTCP protoc, Compatible with standard LoRaWAN gateways and third-party loT platforms.
High stability, adaptability and quickly measurement.
PH Sensor Specification:
| Power Supply | DC12/24V |
|
LW102D-PH weight
|
150g |
|
Measuring Principl
|
Glass Electrode Method
|
|
Operating Temperature
|
0～50℃，≤0.2MPa
|
|
Measuring Range
|
0~14.00PH
|
|
Accuracy
|
±0.1, ±0.3℃
|
|
Resolution Ratio
|
0.01PH, 0.1℃
|
|
Temperature Compensatio
|
Automatic temperature compensation (Pt1000)
|
| Electrode usage cycle | 6-12 months |
|

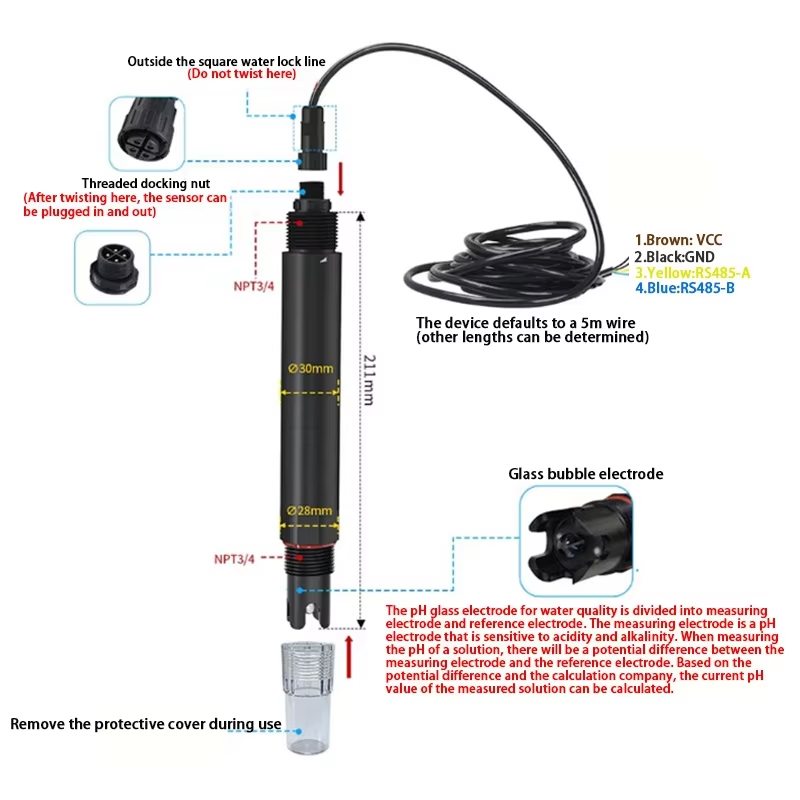

pH Transmitter Line length
|
Default 5m (other lengths can be customized)
|
|
Frequency
|
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
|
| Mode | OTAA Class A/C |
| Reporting cycle | External power supply:10min(Default reporting cycle) |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 |
| DevEUI：aaaa202404150001 | |
| AppKey：00001111222233334444555566667777 | |
| MAC Version：LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Product Description:
Customer on-site examples:
Application:
Solar pH sensors are widely used in fields such as aquaculture, environmental monitoring, agricultural irrigation, and sewage treatment. Its characteristics of no wiring and solar power supply make it particularly suitable for monitoring scenarios in the wild, without mains power supply, or long-term unmanned operation. It enables remote, real-time, and continuous monitoring of water pH values, helping with intelligent management and timely warning.
Certifications：
We are best solar water quality PH sensor manufacturer and exporter in China with more than 10 years. Our solar water ph sensor products are certified with of CE, ROHS.
Production Process:
Why choose us:
Want to know about this product?
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
