ZONEWU LoRaWAN Pressure Sensor
ZONEWU LoRaWAN Pressure Sensor ZONEWU LoRaWAN Pressure Sensor ZONEWU LoRaWAN Pressure Sensor ZONEWU LoRaWAN Pressure Sensor ZONEWU LoRaWAN Pressure Sensor

IoT IP68 LoRaWAN Wireless Pressure Sensor with Lithium Battery

This product is a wireless pressure acquisition terminal based on LoRaWAN, using a high-performance silicon piezoresistive oil filled core with an accuracy of ± 0.5% F.S and a range of 0-2.5MPa (customizable). Built in ER26500 lithium-ion battery, with a maximum range of 3 years (depending on the reporting cycle), supporting multiple frequency bands such as CN470/EU868/US915, and OTAA Class A mode. By using the Type-C port in conjunction with PC tools, parameters such as reporting cycles and triplets can be flexibly configured, and remote downlink command control is supported. The all stainless steel sealed structure is suitable for M2M scenarios such as process control, aerospace, HVAC, etc., achieving low power consumption and reliable pressure monitoring over long distances.

  • Model No.:

    LW203B-PM

  • Use:

    Monitor Pipeline Pressure

  • Power Supply:

    Battery,3.6V

  • LoRaWAN Mode:

    OTAA Class A/C

  • Certificates:

    CE,ROHS,FCC,ISO and 11 patents certifications

  • Customized Support:

    OEM, ODM

  • Warranty:

    1 Year
Inquire now
  • Product Detail
IoT IP68 LoRaWAN Wireless Pressure Sensor with Lithium Battery


ZONEWU LoRaWAN Wireless Pressure Sensor：
This product is an industrial grade wireless pressure collection terminal based on LoRa spread spectrum modulation technology, integrating data collection, active reporting, and remote control, designed specifically for Internet of Things (IoT) and M2M application scenarios. With ultra-low power consumption, ultra long distance communication, and excellent environmental adaptability, it can help users easily achieve real-time pressure monitoring of various pipelines, containers, and equipment, effectively reducing wiring costs and maintenance difficulties. It is an ideal sensing terminal in fields such as smart industry and smart cities.

LoRaWAN Wireless Pressure Collection Sensor: Core Advantages

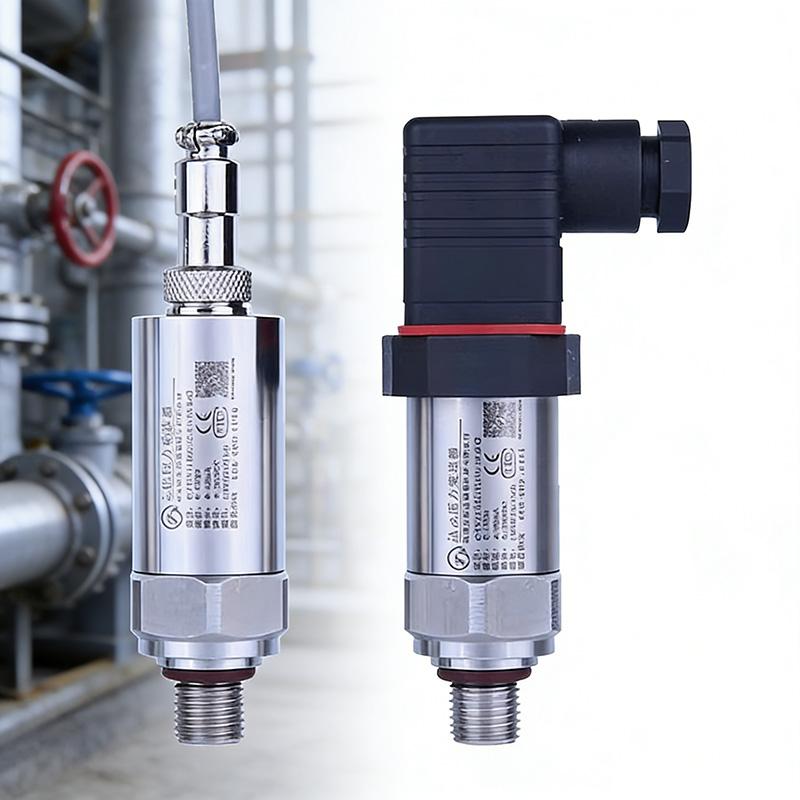

  • Core Perception Performance: Adopting high-performance silicon piezoresistive oil filled pressure core, combined with dedicated signal conditioning circuit, the range covers 0-2.5MPa (can be customized as needed), and the accuracy can reach ± 0.5% F.S., ensuring accurate and reliable data; The all stainless steel sealing structure (M20 × 1.5 standard thread) ensures stable operation even under harsh conditions such as humidity and corrosion.
  • Wireless communication and power consumption: Supports mainstream LoRaWAN frequency bands worldwide (CN470/EU868/US915, etc.), using OTAA Class A mode to ensure secure access; Built in 3.6V lithium-ion battery (ER26500), combined with intelligent sleep mechanism, can last up to 3 years (depending on the reporting cycle), significantly reducing replacement frequency and maintenance costs.

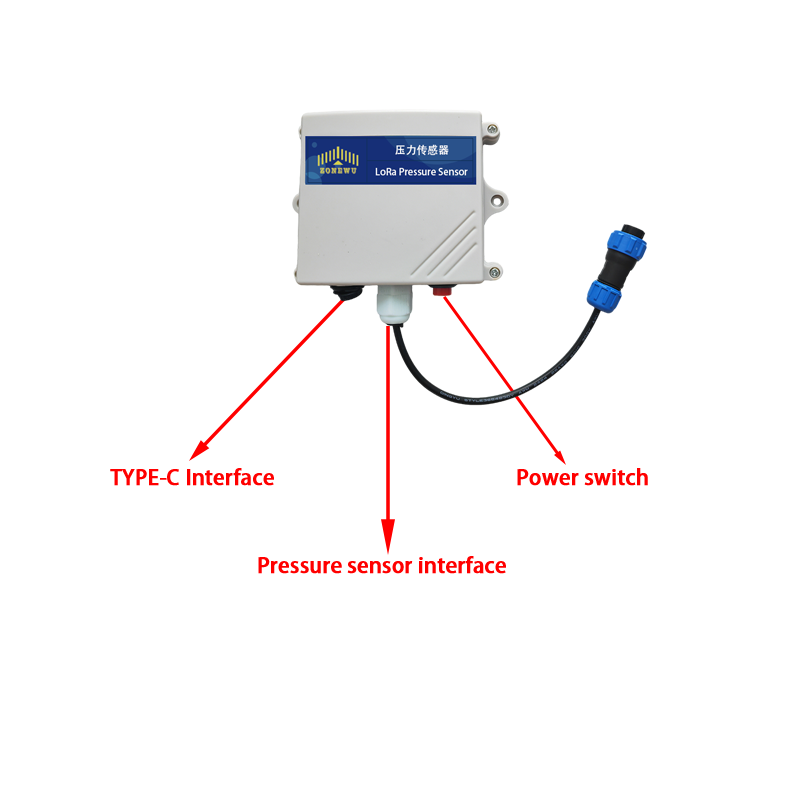

  • Flexible configuration and intelligent reporting: By connecting to the PC configuration tool through the Type-C interface, the reporting cycle (adjustable from 1 to 65535 seconds), triplet parameters, and frequency group mask can be easily set; Simultaneously supporting remote parameter modification or device restart through downstream commands, achieving convenient on-site management without the need to open the cover. When the device is connected to the network or restarted, it automatically reports version and status information, and has the function of actively identifying abnormal values (such as sensor disconnection and undervoltage) to improve system maintainability.
  • Widely applicable scenarios: The product has a compact structure and weighs only 200g, suitable for many fields such as process control, aerospace, automotive manufacturing, medical equipment, HVAC, etc., providing solid data support for industrial digital upgrading.


LoRaWAN Pressure Sensor parameters:



Power supply

Lithium-ion battery ER26500 ,3.6V

Weight

200g

Operating Temperature

-10~40℃

Range

 0–2.5 MPa (other ranges available upon request)

Accuracy

±0.5% F.S

Transmitter Line length

Default 5m (other lengths can be customized)

Battery Life

≤3 years (depending on the reporting cycle)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Mode

OTAA  Class A

Reporting Period

60min(Default )

Software protocol

LoRaWAN,LoRa TDMA Networking

Device Information

AppEUI：0000000000000001

DevEUI：aaaa202404150001

AppKey：00001111222233334444555566667777

MAC Version：LoRaWAN 1.0.3




Packaging:

Single gross weight: 1.200 KG

Single package size: 37X26X5 cm



Product Description:




Application:


  • Process control and industrial automation: Real time monitoring of pipeline, reactor, and storage tank pressure to ensure production safety.
  • Aerospace and automotive manufacturing: used for hydraulic/pneumatic system testing, braking, and fuel line pressure collection.
  • Medical devices and HVAC systems: Pressure monitoring of medical equipment (such as ventilators) and refrigerant pressure detection of HVAC systems.
  • Smart cities and public utilities: remote pressure monitoring of water supply pipelines, gas pipelines, and fire protection systems to assist in digital operation and maintenance.




Certifications：

We are best IoT sensor manufacturer and exporter in China with more than 10 years. Our IoT sensor products are certified  with of CE, ROHS.







Why LoRaWAN for Pressure Monitoring?

Long distance low power consumption: LoRaWAN supports communication over several kilometers, and the terminal can be powered by batteries for several years without wiring, making it suitable for distributed liquid level monitoring in reservoirs, rivers, and other areas.LoRaWAN supports communication over several kilometers, and pressure sensor terminals can run on batteries for years with no wiring required. It perfectly fits distributed pressure monitoring scenarios including pipeline networks, pump stations and underground pipe galleries.
Penetrating strong anti-interference: Its spread spectrum signals easily pass through barriers like factory equipment, underground piping and concrete walls, with outstanding anti-noise capability. It guarantees steady, credible pressure data collection for industrial production and municipal pipeline monitoring environments.





Production Process:



Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
