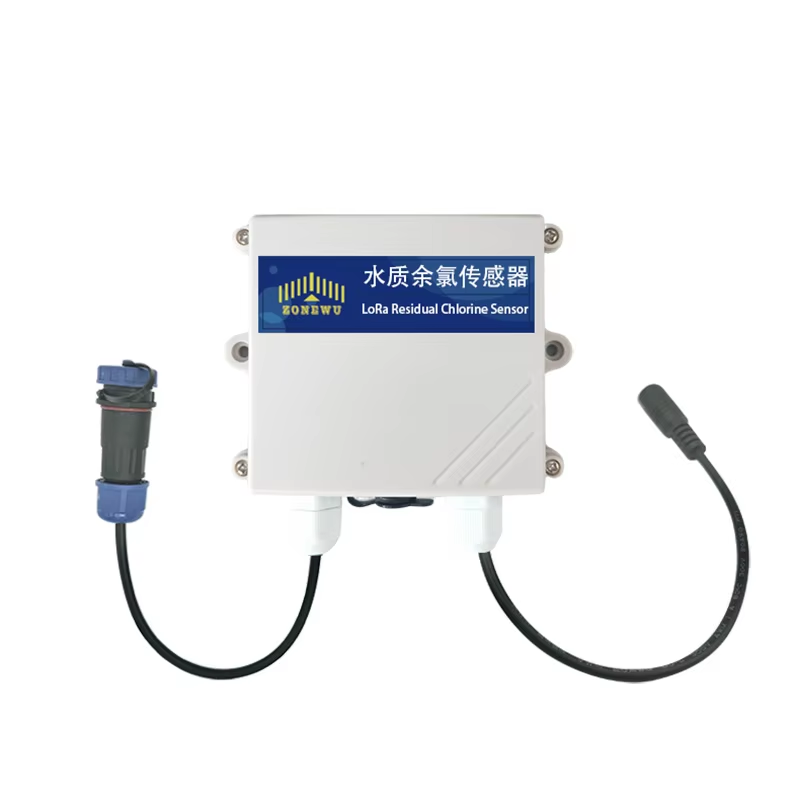

This LoRaWAN residual chlorine sensor is widely used in Agricultural Irrigation and Facility Horticulture water quality sensor analyze. High stability, adaptability and quickly measurement. OEM & ODM service is accepted.
Model No.:
LW104D-CLUse:
Residual chlorine analyzerPower Supply:
Battery or External DCMeasuring Accuracy:
±5%FSLoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM, ODMWarranty:
1 YearLoRaWAN Residual Chlorine Sensor Water Quality Sensor
Our Residual Chlorine Sensor is based on LoRa communication, supports TDMA ad hoc networks, with the ability to collect 240 nodes on the same network. The gateway supports 4G Ethernet, and wired RS485 reporting to the loT platform. Supports MQTT/TCP/UDP/ModBusRTU/ModBus TCP protocol Compatible with standard LoRaWAN gateways and third party loT platforms. Long Range, Strong Penetration, LoRa Communication.

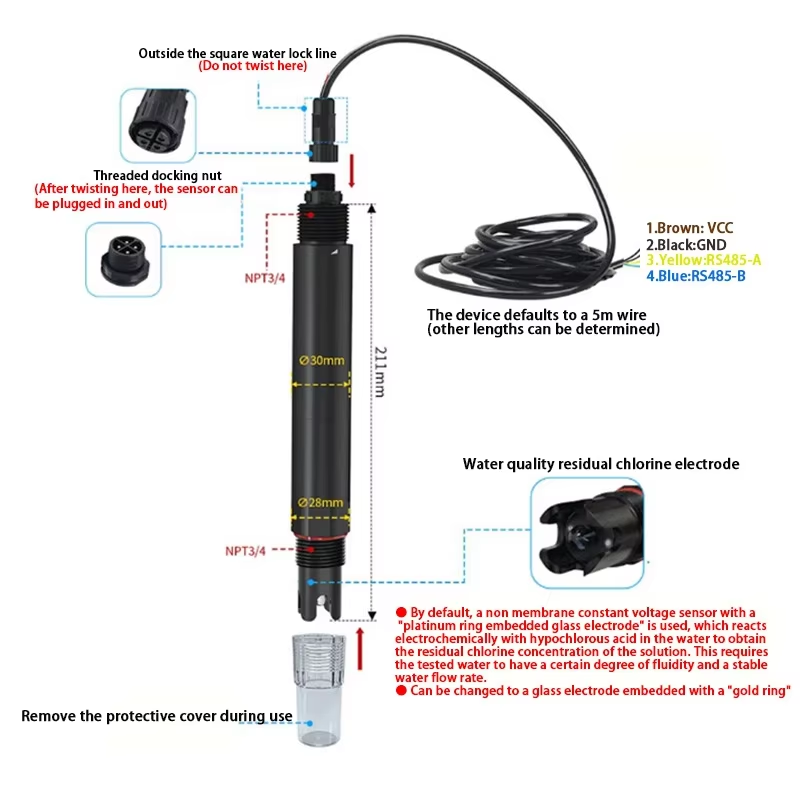

Residual Chlorine Sensor Details:
|
Power Specifications
|
Rated Voltage:12VDC,Scope:DC10~28V
|
|
Rated input current: 500mA
|
|
|
Interface specification: DC 5.5mm × 2.1mm(positive inside and negative outside)
|
|
| LW104D-CL Weight | 150g |
| Working Conditions | Temperature resistance of transmitter components: 0-50 ℃ |
| PH:4-9 | |
| Flow rate: 30-60L/h | |
| Measuring Range | 0-2mg/L,0-10mg/L(default),0-20mg/L |
| Measurement Error | ±5%FS |
| Repeatability Error | ±0.05mg/L |

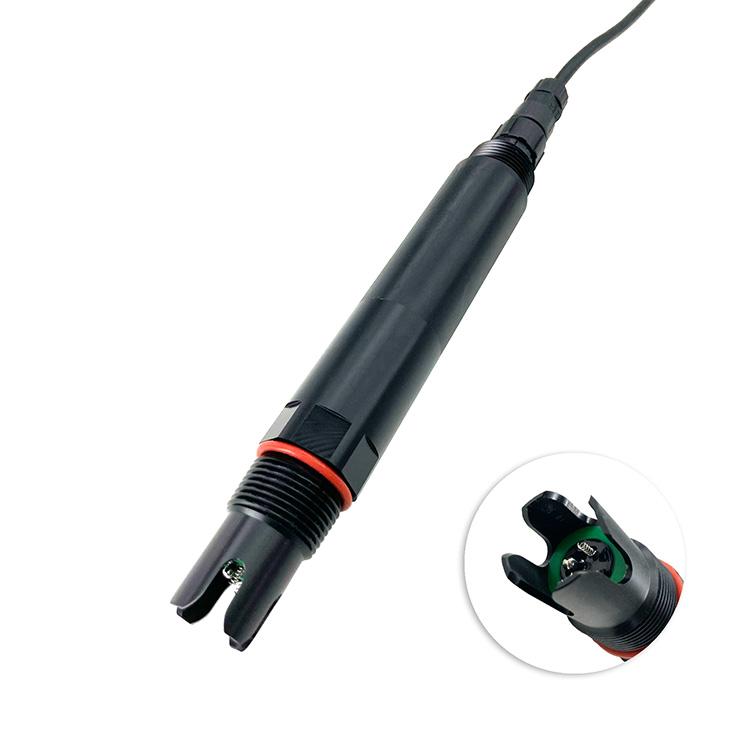

| Electrode usage cycle | 12 months |
| Pressurization | 0.6Mpa |
|
Transmitter Line length
|
Default 5m (other lengths can be customized) |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 5min(Default ) |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI: 331341E186891989 |
| DevEUI: aaaa202404150001 | |
| AppKey: 5572404c696e6b4c6f526132330313823 | |
| MAC Version: LoRaWAN 1.0.3 |

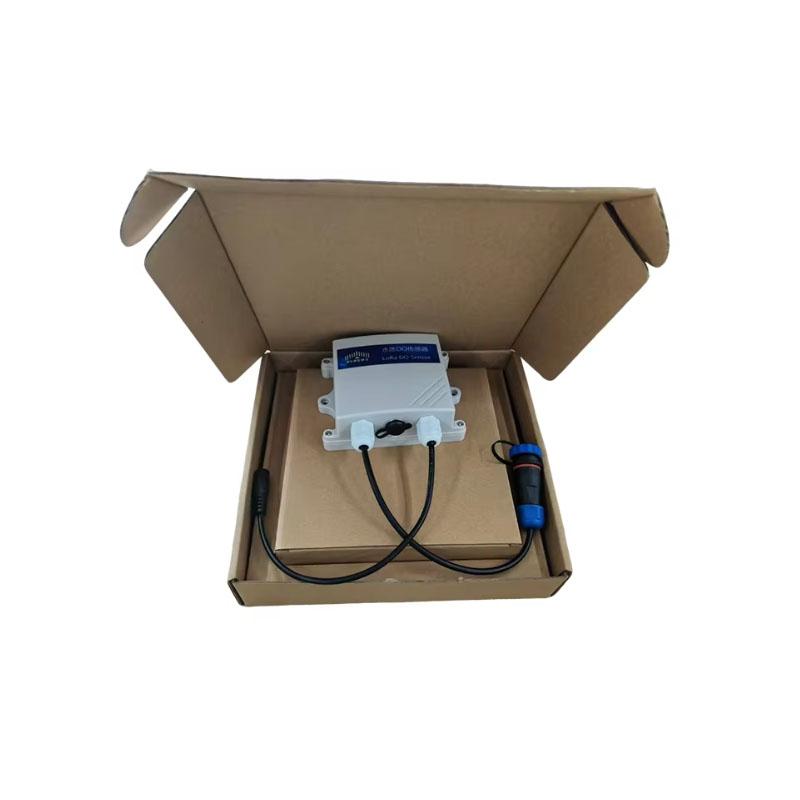

Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm

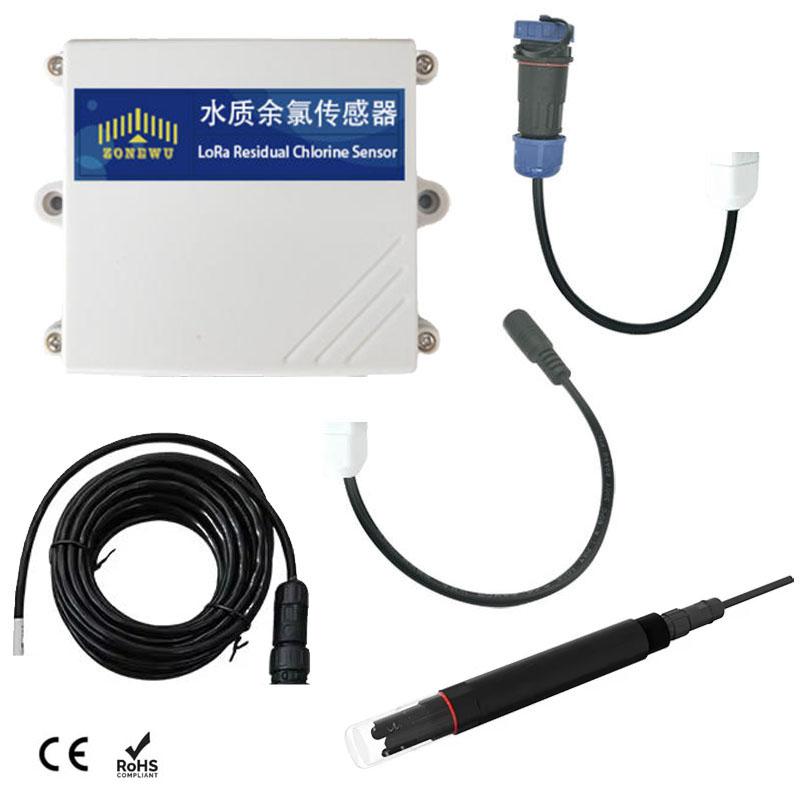

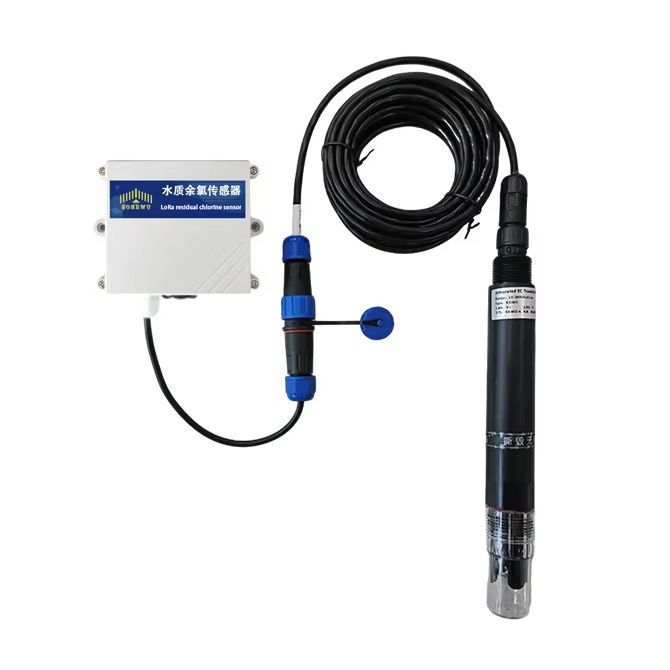

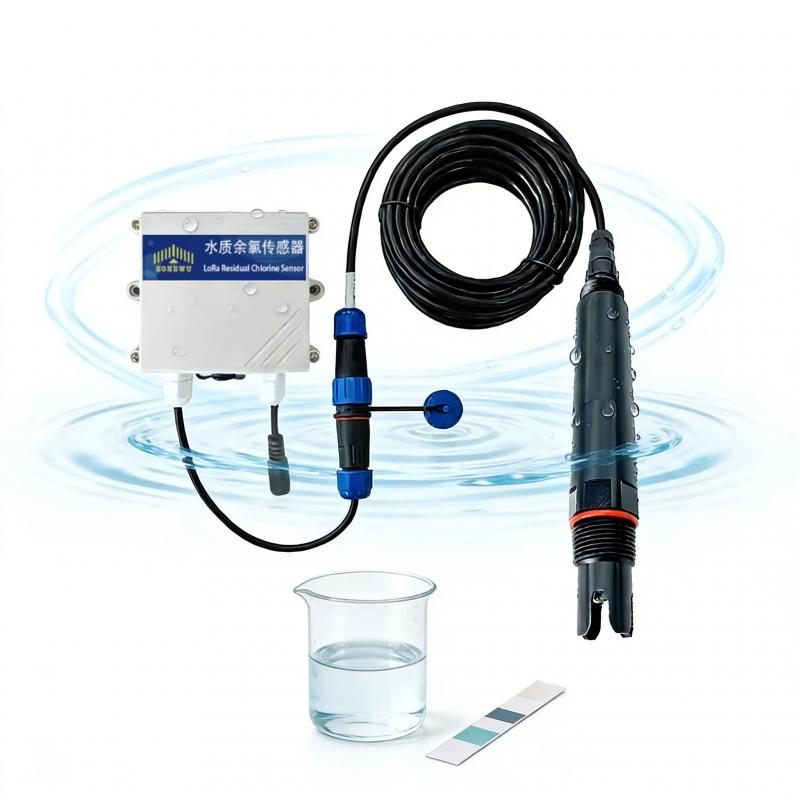

Product Description:
Customer on-site examples:
Application:
Solar residual chlorine(CL) sensors are widely used in outdoor scenarios such as aquaculture, drinking water disinfection, and sewage treatment to monitor residual chlorine concentration in real-time and ensure water quality safety. With solar power supply and wireless transmission characteristics, it is particularly suitable for long-term monitoring needs in remote areas and environments without mains power.
Certifications:
We are best solar water quality residual chlorine(CL) sensor manufacturer and exporter in China with more than 10 years. Our solar water residual chlorine(CL) sensor products are certified with of CE, ROHS.
