Model No.:
LW107-NHNUse:
Measure NHN of waterMeasuring Accuracy:
Battery or External DCLoRaWAN Mode:
OTAA Class AShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:
1 Year

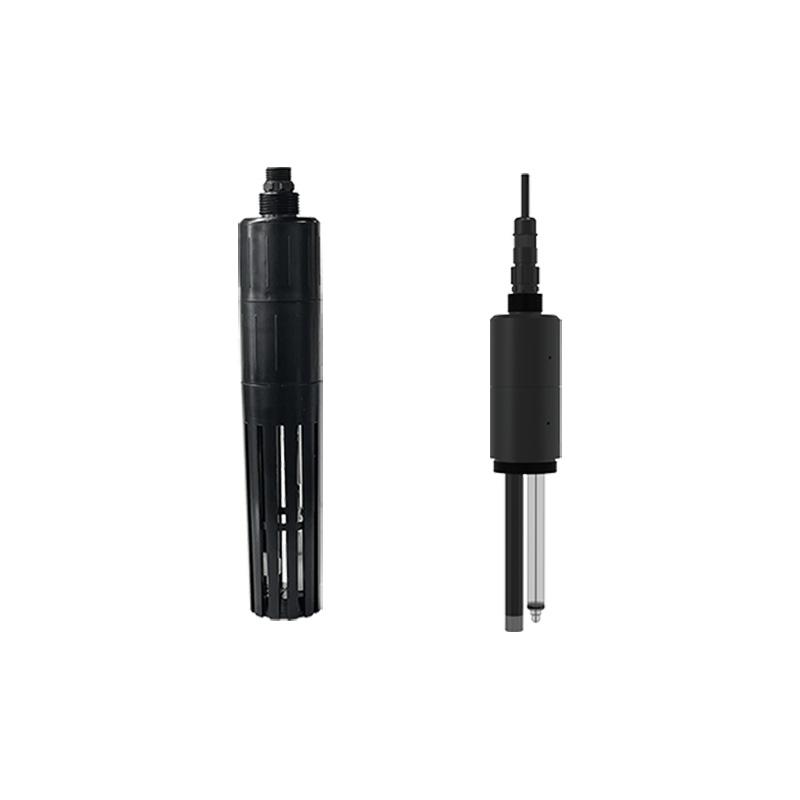

Quick Response LoRaWAN Water Quality Ammonia Nitrogen(NHN) Sensor

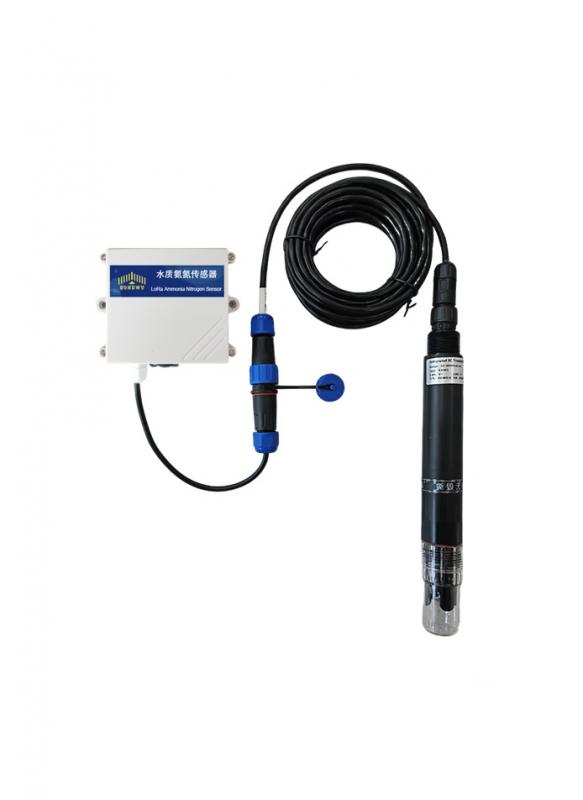

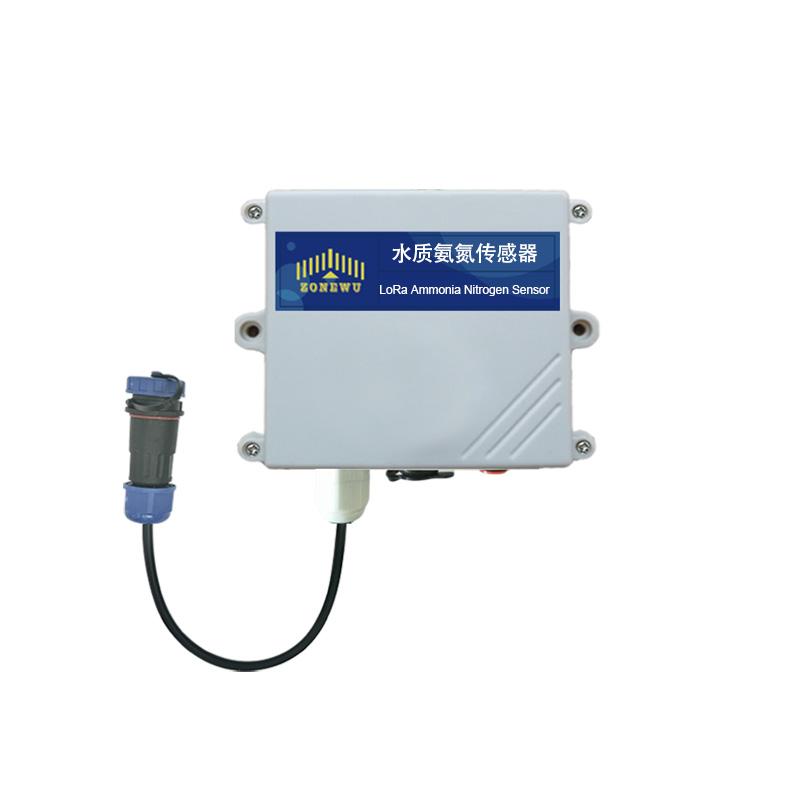

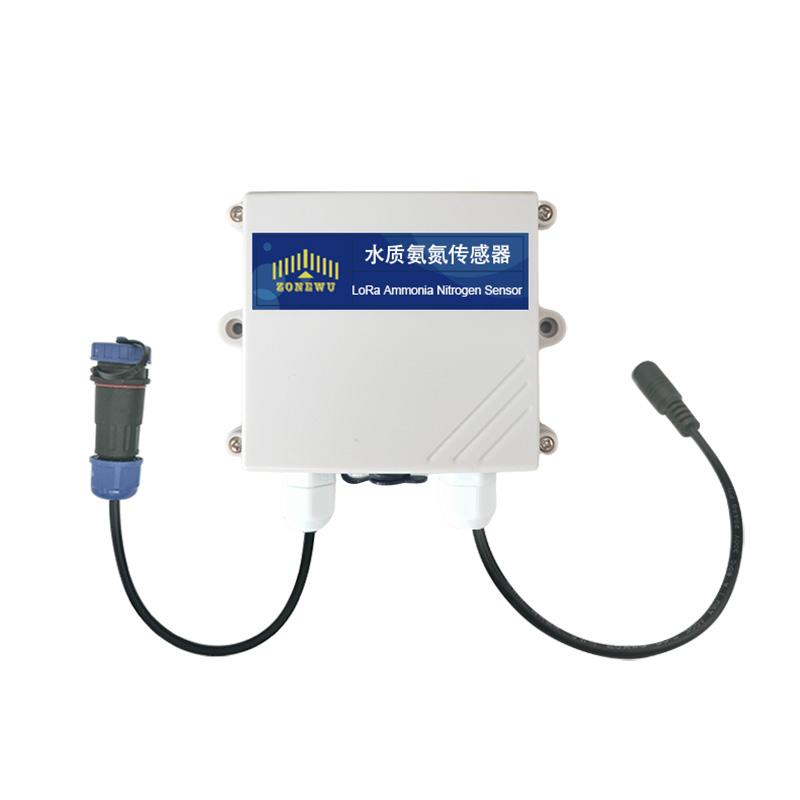

This LoRaWAN water quality ammonia nitrogen monitoring device is a wireless IoT sensor used to accurately detect the content of ammonia nitrogen in water in the form of free ammonia (NH3) and ammonium ions (NH ₄⁺). The device integrates data collection, real-time monitoring, and remote reporting functions. Its LoRaWAN collector is connected to the ammonia nitrogen transmitter through an aviation connector, making installation convenient and reliable.
This sensor is suitable for multiple fields such as environmental engineering, water treatment, agricultural breeding, drinking water safety, and scientific research experiments, providing efficient and economical water quality monitoring solutions for different scenarios.
Water Quality NHN Sensor Specification:
Power Supply | DC 12/24V | |
Unit weight with probe | 150g | |
Operating Temperature | 0~+40°C | |
Measuring Range |
0-10mg/L,resolution:0.01mg/L 0-100mg/L,resolution:0.01mg/L 0-1000mg/L,resolution:0.1mg/L |
|
PH Measuring Range | 0-14PH | |
Temperature measurement range | -20~80℃ | |
Measurement Error |
Ammonia nitrogen measurement error:±3%FS PH measurement error:±0.15PH Temperature measurement error:0.3℃ |
|
Pressure Resistance | 0.2MPa | |
Electrode Usage Cycle |
PH electrode for 6-12 months Ammonia nitrogen electrode for 3-6 months |
|
EC Transmitter Line length |
Default 5m (other lengths can be customized) | |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A | |
Reporting cycle | 5min(Default ) | |
Battery Life | ≤3 years (Depending on the reporting cycle) | |
Note: Due to the high power consumption of EC sensor, it is not recommended to use short cycle data reporting. | ||
Communication Protocol | LoRaWAN,LoRa TDMA Networking | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 25X22X11cm
Application:
Ammonia nitrogen sensors are widely used in the fields of sewage treatment, aquaculture, and environmental monitoring to detect real-time ammonia nitrogen content in water bodies, providing key data support for water quality management and pollution control.
Certifications
We are best water quality EC sensor manufacturer and exporter in China with more than 10 years. Our water ec sensor products are certified with of CE, ROHS.
