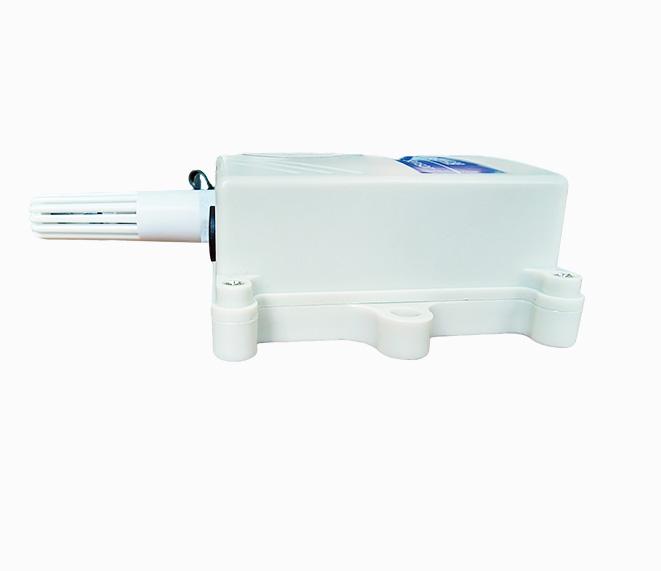

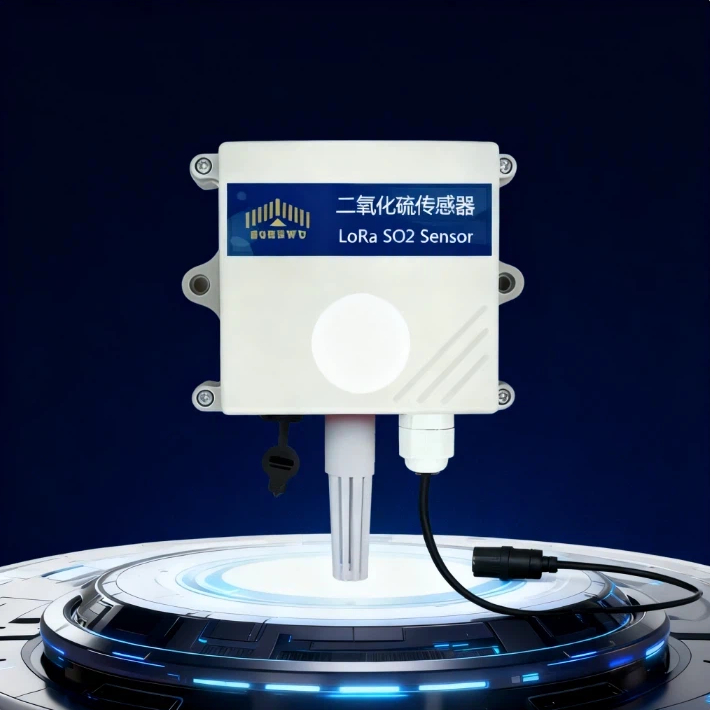

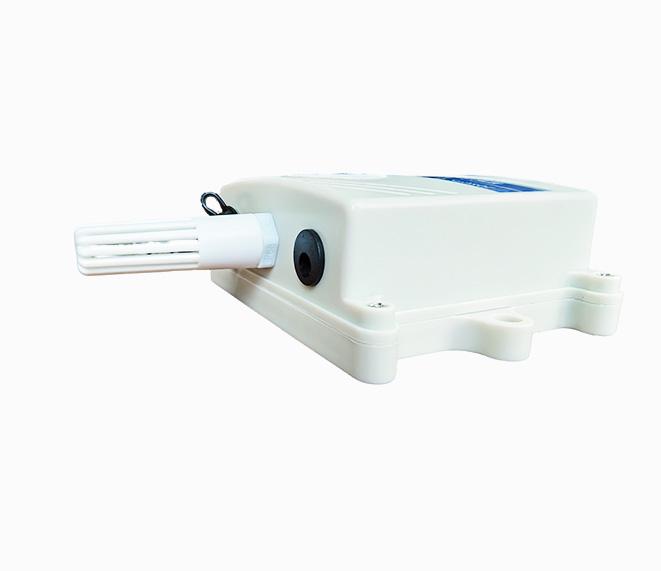

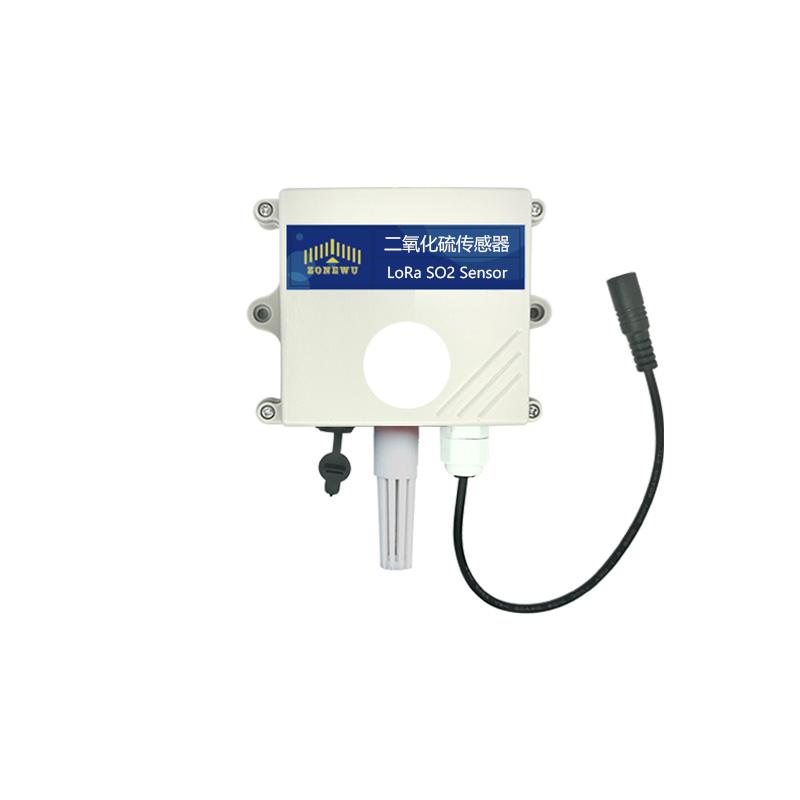

ZONEWU High Sensitivity LoRaWAN Sulfur Dioxide (SO2) Detector

Power Specifications

Rated Voltage:12VDC,Scope:DC5~28V

Rated input current: 500mA

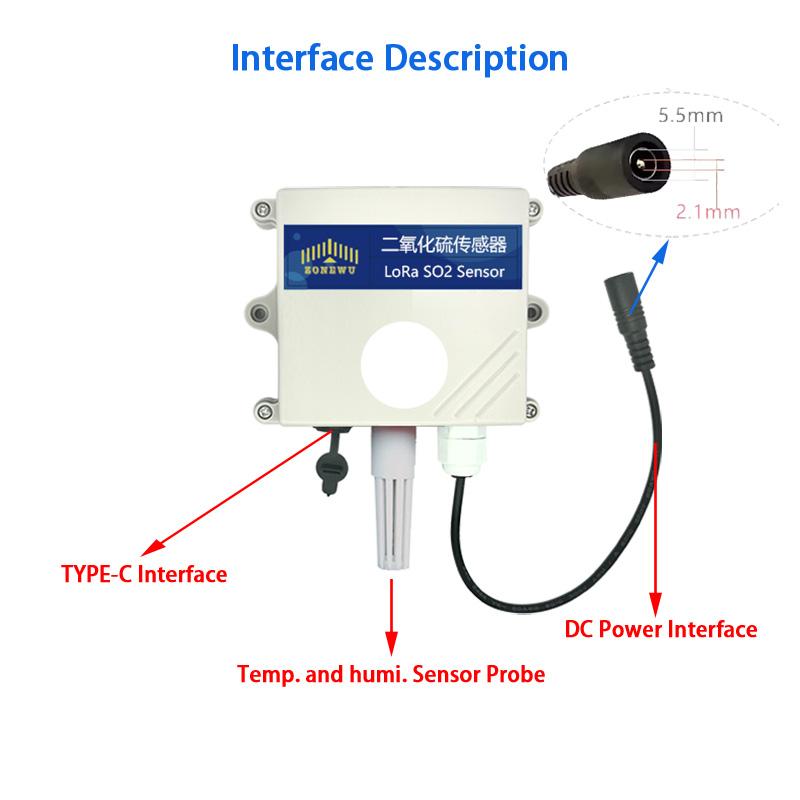

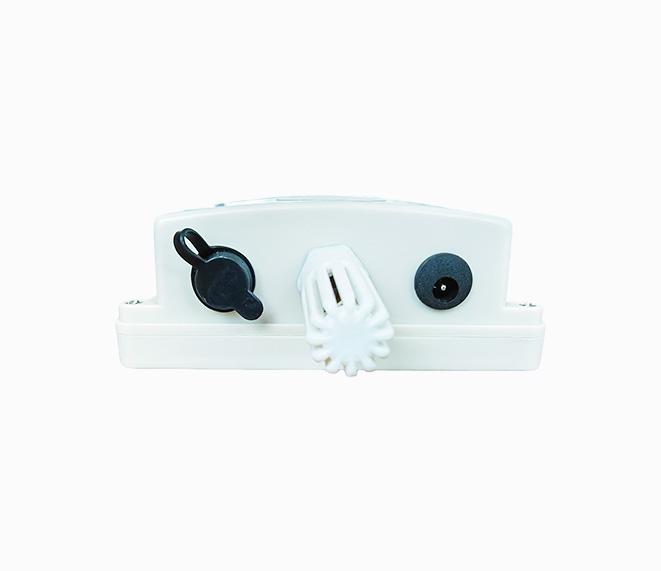

Interface specification: DC 5.5mm × 2.1mm

(positive inside and negative outside)

Weight

120g

Usage Environment

Temperature: -20℃～50℃

Humidity: 15%~ 90% RH without condensation

NOTE:It is not recommended to stay in a high humidity environment for more than half a month

Measuring Principle

Electrochemical Principle

Measuring Range

SO2: 0-20 ppm

Resolution Ratio

SO2: 0.1 ppm

Temp.and Humi. Sensor

Temp Range:-40~+80 ℃

Accuracy:±0.3 ℃

Humi Range:0~99.9 %RH

Accuracy:±2 %RH

Sensor Lifespan

< 2 years

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class A/C(Default: Class C)

Reporting cycle

5 min(Default reporting cycle)

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI：0000000000000001

DevEUI：aaaa202404150001

AppKey：00001111222233334444555566667777

MAC Version：LoRaWAN 1.0.3

Warranty Period

1 year
