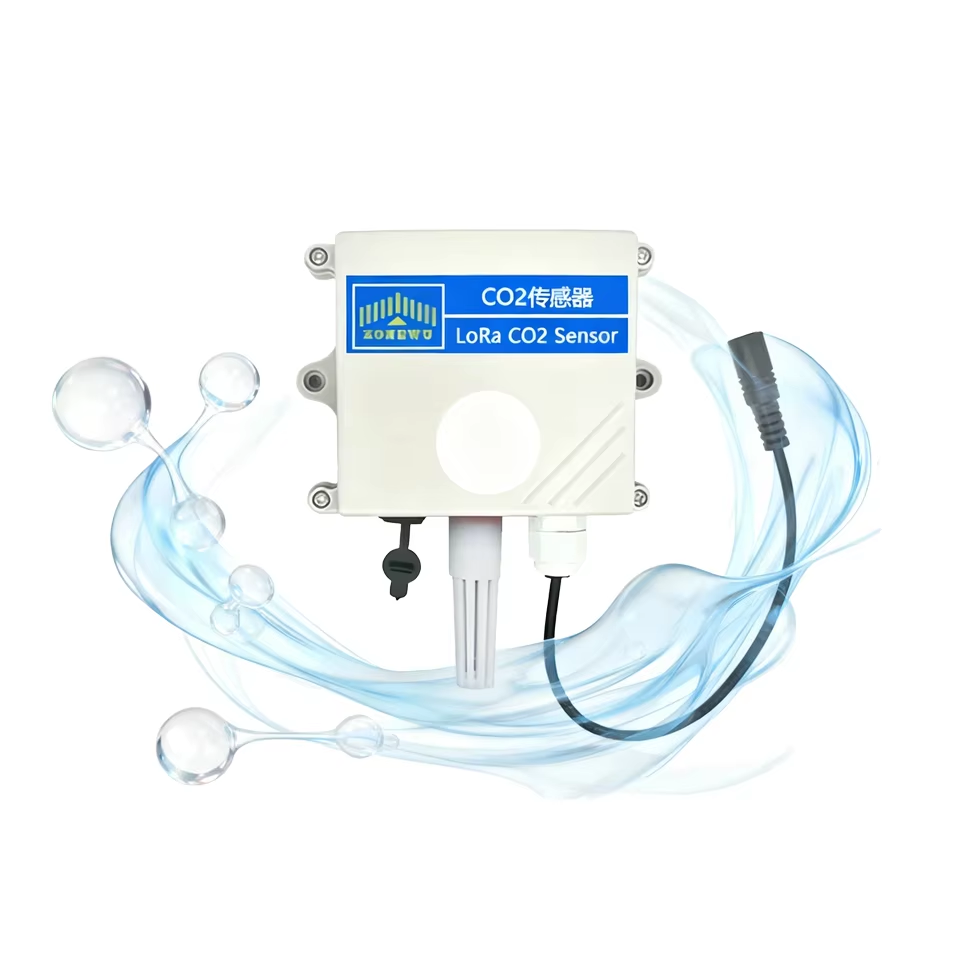

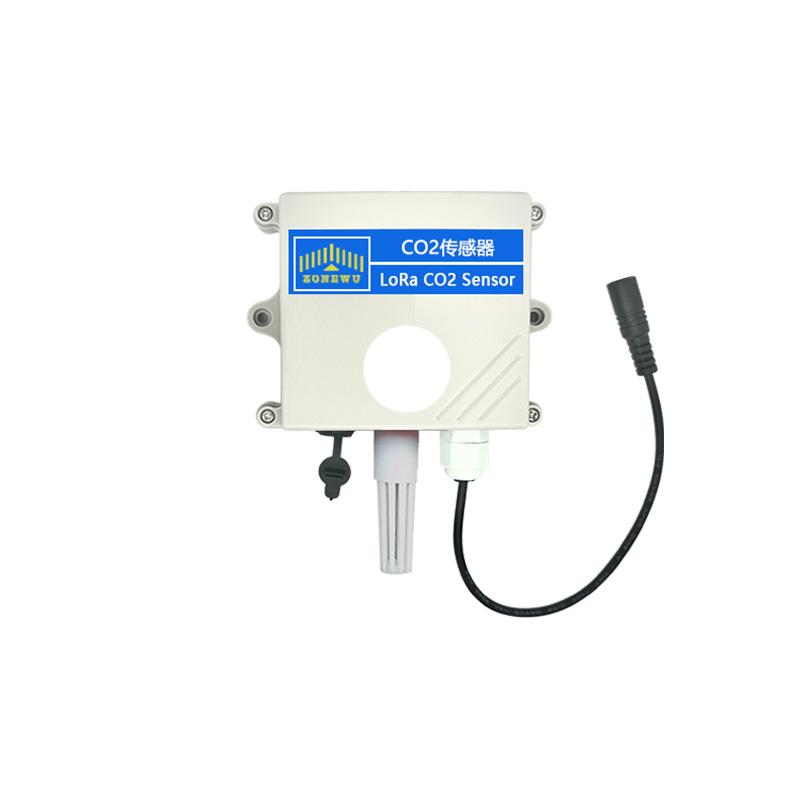

ZONEWU LoRaWAN CO2 Temperature Humidity Sensor

ZONEWU LoRaWAN CO2 Temperature Humidity Sensor Based on LoRa spread spectrum modulation technology, terminals can perform ultra long distance communication. A wireless monitoring device that integrates data collection, monitoring, and transmission. This product is equipped with a carbon dioxide (CO2) sensor and a temperature and humidity sensor.

  • Model No.:

    LW303D-CO2

  • Use:

    Detect the content of gas CO2

  • Power Supply:

    5~28VDC

  • LoRaWAN Mode:

    OTAA Class A/C (Default: Class C)

  • Certificates:

    CE,ROHS,FCC,ISO and 11 patents certifications

  • Customized Support:

    OEM, ODM

  • Warranty:

    1 Year
Inquire now
  • Product Detail

ZONEWU LoRaWAN CO2 Temperature Humidity Sensor


ZONEWU LoRaWAN CO2 Temperature Humidity Sensor Non dispersive infrared (NDIR) principle is used to detect carbon dioxide in the air. This sensor is oxygen independent, stable in performance, and has a long lifespan. Built in temperature compensation. The sensor is equipped with an emergency reporting function for abnormal data, which can actively report anomalies based on preset upper and lower threshold values according to the on-site environment. At the same time, it can be linked with DO transistors to output DC voltage for alarm control or power control. It supports the standard LoRaWAN protocol and TDMA network protocol for self-organizing networks.


LoRaWAN Gas Hydrogen Sulfide(CO2) Sensor :

Precise measurement.
Stable performance.
Low energy consumption.

This CO2 sensor is suitable for long-term use.



CO2 Sensor Specification:


Power Supply

5~28VDC

Weight

120g

Usage Environment

-20℃～60℃

0-95% RH (non condensing)

Measuring Principle

Principle of Non Dispersive Infrared (NDIR)

Measuring Range

CO2:0～6000 ppm

Resolution Ratio

±50ppm

Temp.and Humi. Sensor

Temp Range:-40~+80 ℃

Accuracy:±0.3 ℃

Humi Range:0~99.9 %RH

Accuracy:±2 %RH

Lifespan

> 5 years

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class A/C(Default: Class C)

Data Collection Cycle

10s(Default)

Reporting cycle

5min(Default reporting cycle)

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI：331341E186891989

DevEUI：aaaa202404150001

AppKey：5572404c696e6b4c6f526132330313823

MAC Version：LoRaWAN 1.0.3

Warranty Period

1 year


Packaging:

Single gross weight: 0.600 KG

Single package size: 23X20X5 cm

Application:

Our high-precision CO₂ sensor is also extensively applied to gas monitoring scenarios including chemical production facilities, hospital wards, vegetable greenhouses, livestock and poultry farms, tunnel environments, cold chain logistics vehicles, cold storage units and biosafety laboratories.


applications of NO2 sensor


Certifications:

With over 10 years of expertise, we stand as a leading manufacturer and exporter of gas sensors in China. Our CO₂ sensors are fully certified to CE and RoHS standards.




Production Process:


factory of gas sensor manufacturer



Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
