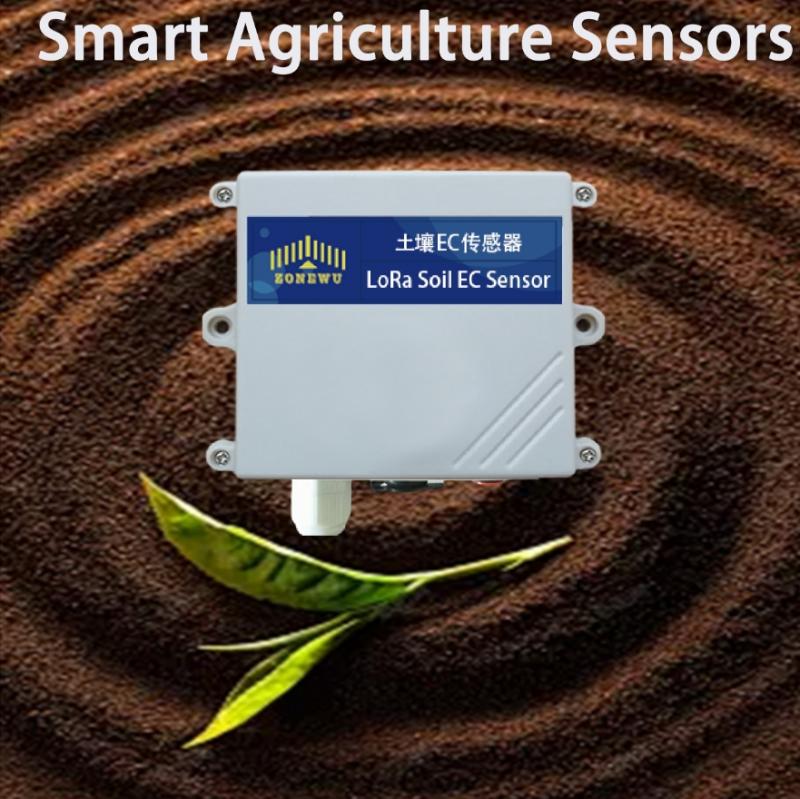

Ideal High Precision Wireless Lorawan Soil EC sensor
Ideal High Precision Wireless Lorawan Soil EC sensor Ideal High Precision Wireless Lorawan Soil EC sensor Ideal High Precision Wireless Lorawan Soil EC sensor Ideal High Precision Wireless Lorawan Soil EC sensor Ideal High Precision Wireless Lorawan Soil EC sensor

Ideal High Precision Wireless Lorawan Soil EC sensor

Wireless LoRa Soil Electrical Conductivity Sensor, ZONEWU New Design EC Monitoring Sensors.



  • Model No.:

    LW501-EC

  • Use:

    LoRa Soil EC Sensor

  • Power Supply:

    Solar Powered + Li-ion Battery

  • LoRaWAN Mode:

    OTAA Class A

  • Shell Material:

    ABS

  • Certificates:

    CE,ROHS

  • Customized Support:

    OEM, ODM

  • Warranty:

    1 Year
Inquire now
  • Product Detail

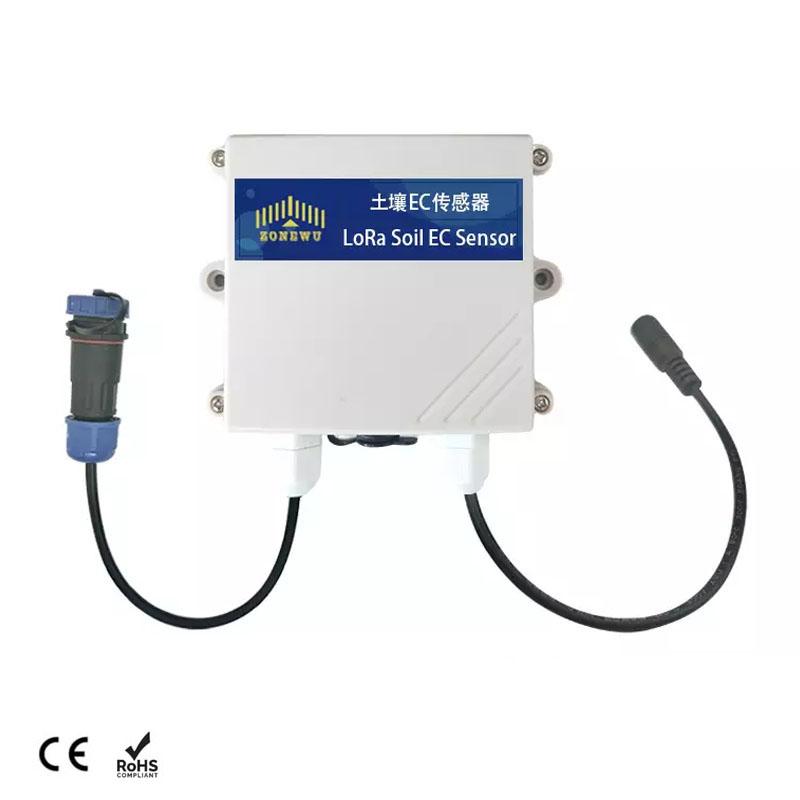

Ideal Precision Lorawan Soil EC sensor


This high precision EC sensor equipment has obvious advantages, Precise measurement, Stable performance, Low energy consumption. Besides, Long life and low maintenance, Multi-function integration, Rapid real-time data acquisition, High precision and adaptive measurement. In terms of data transmission, it follows the standard LoRaWAN protocol, does not require wiring, and can realize long-distance data transmission.


Soil EC sensor Specification:

LoRaWAN Solar Soil EC Sensor
Power Supply Solar Powered + Li-ion Battery
LW501S Weight 230g
Work Environment Temperature: -30℃ to 70℃; Humidity: ≤ 95% RH
Measuring Range Humidity:0%RH-100%RH
0-50% inner soil 2%, 50-100% inner soil 3%
(brown soil, 60%. 25 ° C)
Temperature:-40°C~+80°C,±0.5℃(25°℃)
EC: 0-20000us/cm
Within the range of 0-10000 US/cm, it is ± 3%; Within the range
of 10000-20000us/cm, it is ± 5%. (Brown soil, 60% RH, 25 ° C)
EC Sensor External 45*15*123mm
Dimensions
Steel Needle Material Stainless Steel
Sealing Material Black flame retardant epoxy resin
Transmitter Line length Default 2m (other lengths can be customized)
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode OTAA Class A
Reporting cycle ≤5 years (Depending on the on-site lighting conditions)
Communication Protocol LoRaWAN
Equipment information
(Reference) 		AppEUI:0000000000000001
DevEUI:aaaa202404150001
AppKey:00001111222233334444555566667777
MAC Version:LoRaWAN 1.0.3


Packaging:

Single gross weight: 0.350 KG

Single package size: 23X20X5 cm


Application:

Our soil ec sensor always used as follow scenarios:

Horticultural cultivation: In the cultivation of horticultural crops such as flowers and vegetables, soil sensors can help gardeners precisely control the soil environment. For example, according to the information provided by the soil moisture sensor, the water supply for different types of flowers is timely adjust edto ensure that the flowers grow under the appropriate soil humidity conditions, which helps to cultivate high-quality flowers.

Agricultural production: Soil sensors installed in farmland can monitor the soil's moisture,temperature, nutrients and other information in real time.Based on these data, farmers can accurately irrigate and apply fertilizer, achieve scientific farming, improve crop yield and quality,save water resources and reduce fertilizer use.

Environmental monitoring: In urban conservation areas and forests, soil sensor networks can be deployed to monitor changes in soil indicators over a long period of time.When abnormal changes occur in soil moisture, pH etc. it can promptly detect possible environmental problems, such as drought soil pollution, etc. to provide data support for environmental protection and ecological restoration.

application of Soil EC sensor



Certifications

We are best Smart Agriculture Sensors solution provider in China with more than 10 years. Our LoraWAN Soil EC sensor products are certified with of CE, ROHS.

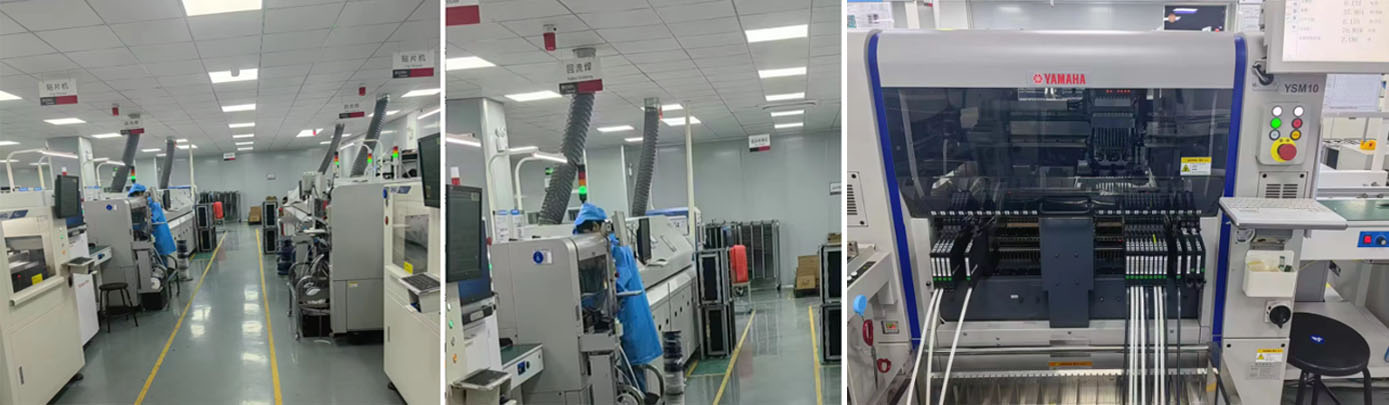

Production Process:


factory of Lorawan Soil EC sensor manufacturer



Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
