/RS485 Modbus pH Sensor | Industrial Water Quality Monitoring Probe IP68

Digital pH sensor
Digital pH sensor Digital pH sensor Digital pH sensor Digital pH sensor Digital pH sensor Digital pH sensor Digital pH sensor

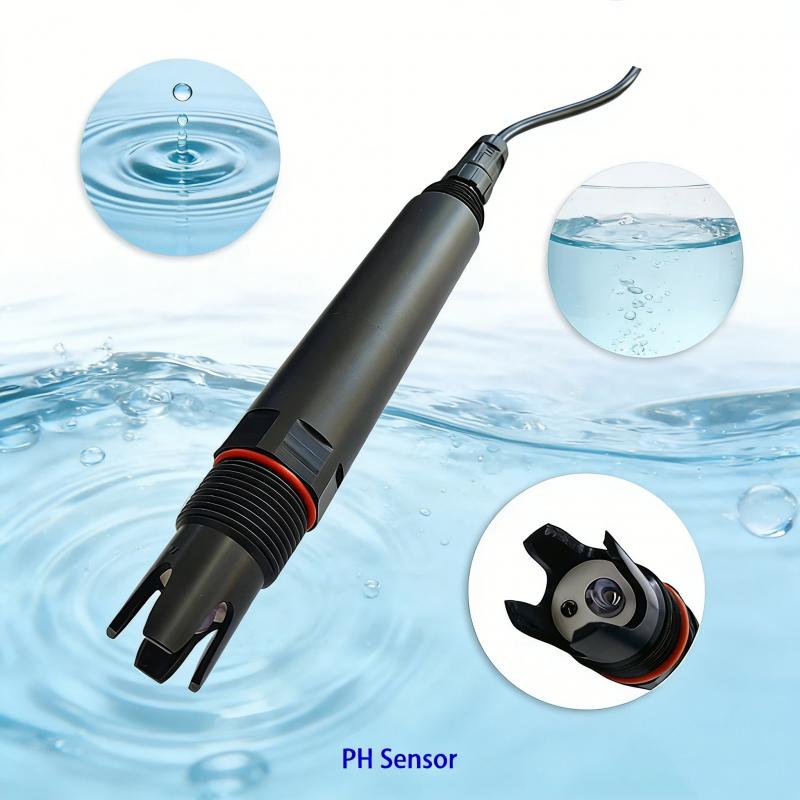

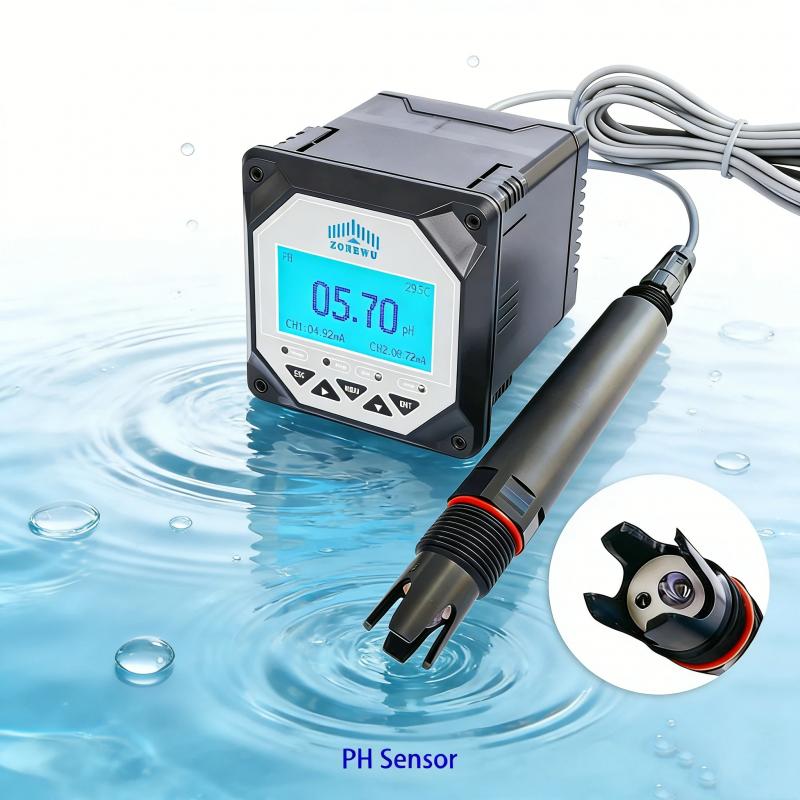

RS485 Modbus pH Sensor | Industrial Water Quality Monitoring Probe IP68

Here’s a polished, professional, and SEO-friendly enriched version for your product description:

This product is specially designed for environmental water quality monitoring, the detection of acid, alkali and salt solutions, real-time tracking of chemical reaction processes, and precise monitoring of **industrial production procedures. It delivers stable and reliable performance, enabling accurate online pH measurement to meet the demanding requirements of most industrial applications. With its high adaptability and durability, it effectively supports process control, quality assurance, and environmental compliance across a wide range of industrial scenarios.


  • Model No.:

    LW102D-PH(RS485)

  • Use:

    Water PH monitoring

  • Power Supply:

    Battery or External DC

  • LoRaWAN Mode:

    OTAA Class A/C

  • Shell Material:

    Stainless Steel

  • Certificates:

    CE,ROHS,FCC,ISO and 11 patents certifications

  • Customized Support:

    OEM, ODM

  • Warranty:

    1 Year
Inquire now
  • Product Detail

RS485 Modbus pH Sensor | Industrial Water Quality Monitoring Probe IP68



Product Features:

  • Widely used in environmental water quality monitoring, acid/alkali/salt solution testing, chemical reaction processes, and industrial production processes, ideal for online pH measurement in most industrial applications.
  • Signal output: RS-485 (Modbus/RTU protocol).
  • Easy to integrate with third-party devices including PLCs, DCS, industrial computers, general controllers, paperless recorders, and touch screens.


  • Equipped with a dual high-impedance differential amplifier for strong anti-interference performance and fast response.
  • Patented pH probe with internal reference solution that bleeds slowly through a microporous salt bridge under 100 kPa (1 Bar) pressure, providing stable performance for over 20 months; electrode life is twice as long as traditional industrial electrodes.
  • Simple installation with 3/4 NPT thread, suitable for submersion, pipeline, or tank installation.
  • Protection class: IP68.


PH Sensor Specification:

Model

ZW-PH-PR

Measuring range

0～14pH

Resolution

0.01pH

Accuracy

±0.1pH，±0.3℃

Working temperature

0～50℃

Working pressure

≤0.2MPa

Temperature compensation

Auto temperature compensation(PT1000)

Power supply

12～24VDC

Signal output

RS-485(Modbus/RTU)

Wetted material

ABS/PC alloy

Mounting method

Submerged installation, 3/4 NPT thread

Cable length

5 meters, other lengths can be customized

Calibration

Two-point calibration

Power consumption

0.2W@12V

Protection grade

IP68


Packaging:

Single gross weight: 1.200 KG

Single package size: 37X26X5 cm



Product Description:


Customer on-site examples:


Application:

  1. RS485 pH sensors are widely used in fields such as aquaculture, environmental monitoring, agricultural irrigation, and sewage treatment.
  2. With stable RS485 (Modbus/RTU) output and strong anti-interference performance, they are particularly suitable for long-term online industrial monitoring, automated systems, and scenarios requiring stable data transmission to PLC, DCS, or industrial control systems.
  3. They enable remote, real-time, and continuous monitoring of water pH values, supporting intelligent management and timely early warning.


applications of versatile Residual Chlorine Sensor


Certifications：

As a professional water quality pH sensor manufacturer & exporter in China with over 10 years of experience, we specialize in RS485 pH sensors for industrial online monitoring.Our pH sensors are fully compliant with CE & RoHS certifications, ensuring reliable quality and stable performance for global customers.




Production Process:


factory of water ec sensor manufacturer



Why choose us:

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
