Model No.:
LW102S-PHUse:
Used for monitoring the acidity and alkalinity of water qualityPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
±0.1,±0.3℃LoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:

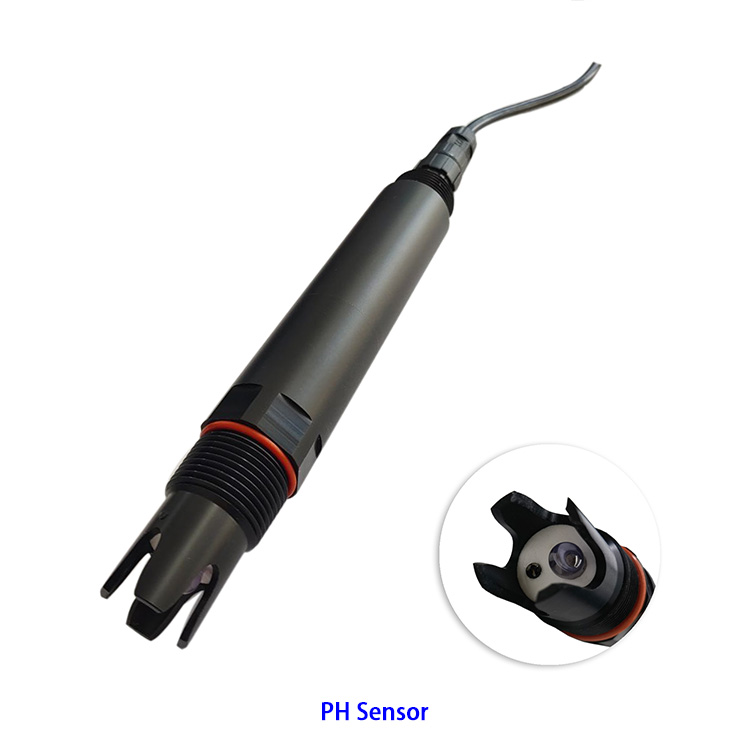

1 YearLong Term Monitoring of LoRaWAN Solar Water Quality PH Sensor
The solar powered pH sensor is an intelligent monitoring device that integrates solar power supply and wireless communication technology. It measures the acidity and alkalinity of water bodies through high-precision electrodes and achieves energy self-sufficiency through solar panels, freeing itself from dependence on traditional electricity and supporting long-term outdoor unmanned work.
This device is widely used in aquaculture, environmental monitoring, sewage treatment, and agricultural irrigation. Its remote real-time data transmission and low maintenance characteristics greatly improve the efficiency and reliability of water quality monitoring, providing sustainable intelligent monitoring solutions for outdoor and non electrified areas.
Water Quality Solar PH Sensor Specification:
Power Supply | Solar Powered + Li-ion Battery | |
Weight | 230g | |
Working Conditions |
0~50℃,≤0.2MPa |
|
Range and resolution | 0~14.00PH | 0.01 | |
Resolution Ratio |
±0.1,±0.3℃ |
|
Electrode usage cycle | 6-12 Months | |
Temperature Compensation | Automatic temperature compensation (Pt1000) | |
Transmitter Line Length |
Default 5m (other lengths can be customized) |
|
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A/C | |
Reporting cycle | 30min(Default) | |
Communication Protocol | LoRaWAN | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5cm
Product Description:
Customer on-site examples:
Application:
Solar pH sensors are widely used in fields such as aquaculture, environmental monitoring, agricultural irrigation, and sewage treatment. Its characteristics of no wiring and solar power supply make it particularly suitable for monitoring scenarios in the wild, without mains power supply, or long-term unmanned operation. It enables remote, real-time, and continuous monitoring of water pH values, helping with intelligent management and timely warning.
Certifications
We are best solar water quality PH sensor manufacturer and exporter in China with more than 10 years. Our solar water ph sensor products are certified with of CE, ROHS.
Production Process:
Why choose us:
