Model No.:
LW101S-DOUse:
Used for monitoring dissolved oxygen in water qualityPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
±3%FS;±0.5℃LoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:

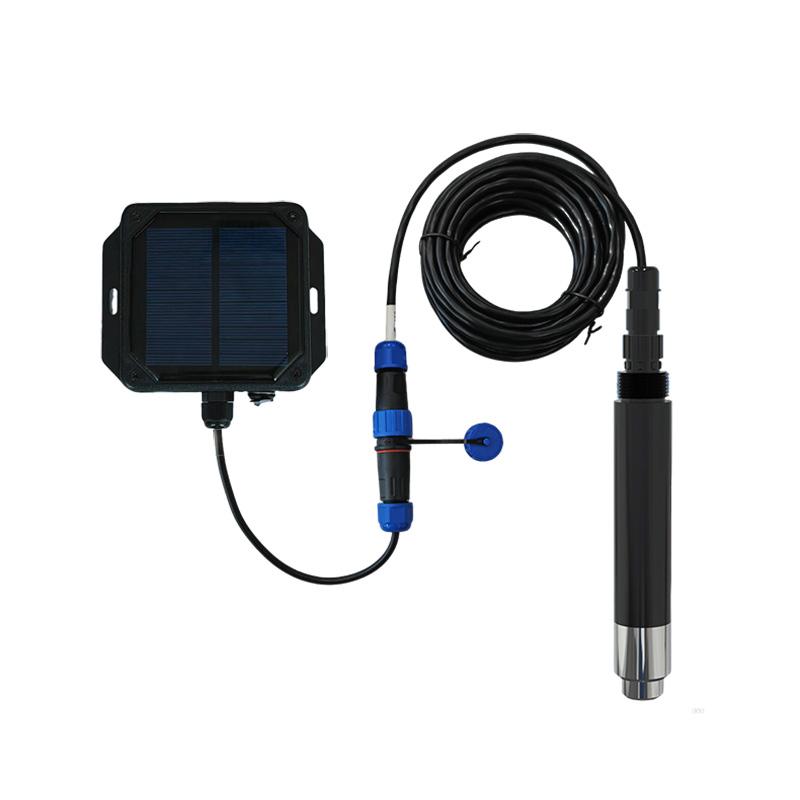

1 YearSelf-Power LoRa Solar Water Quality DO Sensor
Solar DO sensor is a modern water quality monitoring device that utilizes solar energy technology to achieve self powered operation. It is designed specifically for outdoor or non electricity supply scenarios, and accurately measures the dissolved oxygen content in water bodies through high-precision probes. It is a key tool for environmental monitoring and aquatic ecological research.
This device integrates low-power design and wireless transmission technology, which can remotely send real-time data to the cloud platform and achieve long-term continuous monitoring without human supervision. Its biggest advantage lies in completely solving the power supply and data transmission problems faced by traditional sensors in remote areas, greatly reducing operation and maintenance costs.
Water Quality Solar DO Sensor Specification:
Power Supply | Solar Powered + Li-ion Battery | |
Weight | 230g | |
Operating Temperature | 0~40℃ | |
Measuring Principle |
Fluorescence |
|
Measuring Range | 0~20mg/L (0~200% saturation) | |
Measurement Error | ±3%FS;±0.5℃(25℃) | |
Resolution Ratio |
0.01mg/L;0.1%;0.1℃ |
|
Fluorescent Film Lifespan | Normal use for 1 year | |
LOD |
Fluorescence dissolved oxygen transmitter (freshwater version) |
|
LDOS |
Fluorescence dissolved oxygen transmitter (seawater version) |
|
Electrode usage cycle | 12 Months | |
Pressurization | 0.6Mpa | |
DO Transmitter Line Length |
Default 5m (other lengths can be customized) |
|
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A/C | |
Reporting cycle | 30min(Default) | |
Communication Protocol | LoRaWAN | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5cm
Product Description:
Customer on-site examples:
Application:
Solar energy DO sensor is an ideal choice for field water quality monitoring. It is widely used in Rivers and Lakes, aquaculture and environmental protection, and perfectly solves the long-term monitoring problem in areas without electricity and network.
Certifications
We are best solar water quality DO sensor manufacturer and exporter in China with more than 10 years. Our solar water DO sensor products are certified with of CE, ROHS.
