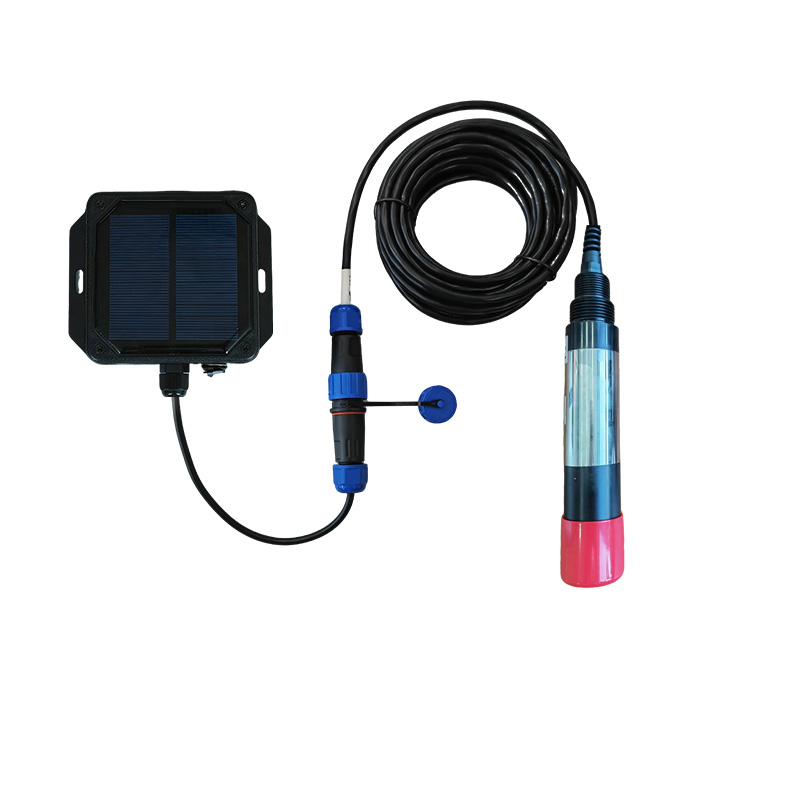

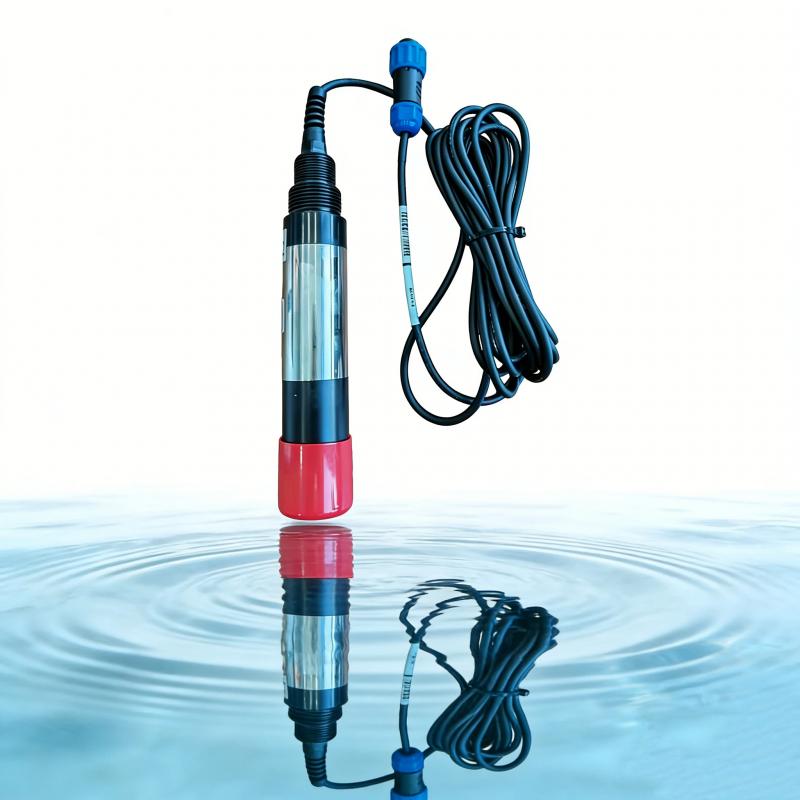

LoRaWAN water quality sodium ion sensor is a wireless sensor used to measure the concentration of sodium ions in water. The sodium ion sensor adopts a sodium ion selective electrode based on polyvinyl chloride membrane and has temperature compensation function, ensuring fast, simple, accurate and economical detection. Connect to the LoRaWAN collector through an aviation connector to achieve wireless communication. Widely used for online automatic continuous analysis and detection of ions in industrial wastewater, surface water, drinking water, and agricultural production process control.
Model No.:
LW113S-Na+Use:
Measure Sodium Ion in waterPower Supply:
Solar Powered + Li-ion BatteryLoRaWAN Mode:
OTAA Class A/CCertificates:
CE,ROHS,FCC,ISO and 11 patents certificationsCustomized Support:
OEM, ODMWarranty:

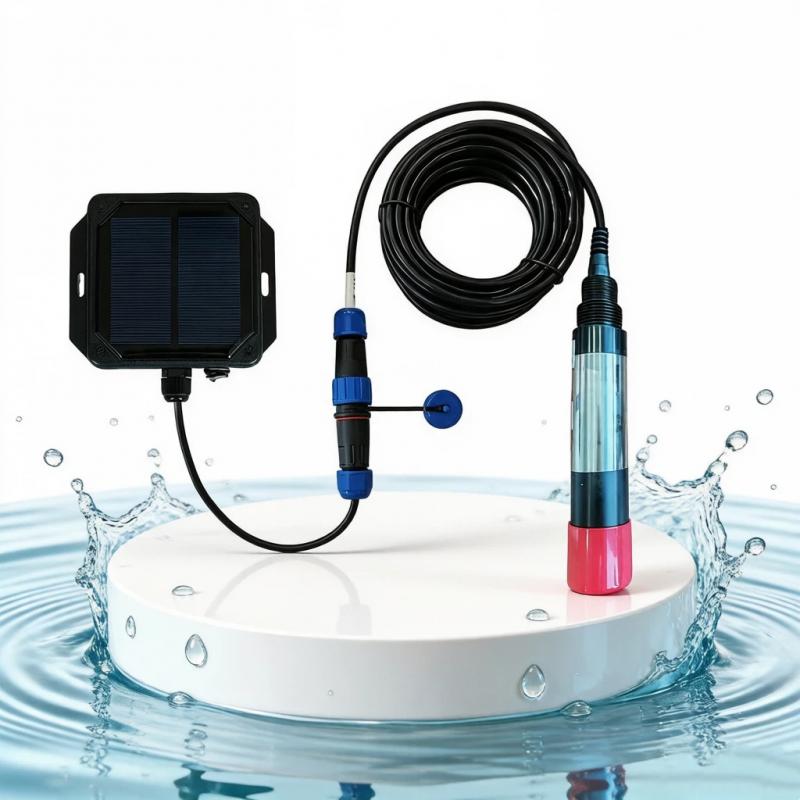

1 YearLoRaWAN Solar-Powered Sodium Ion Water Quality Sensor
Product Overview
The LoRaWAN Water Quality Sodium Ion Sensor is an intelligent wireless sensing device designed for online monitoring of sodium ion concentration in aqueous solutions. It integrates advanced ion detection technology with IoT communication, providing an efficient and reliable solution for water quality management.
Key Features

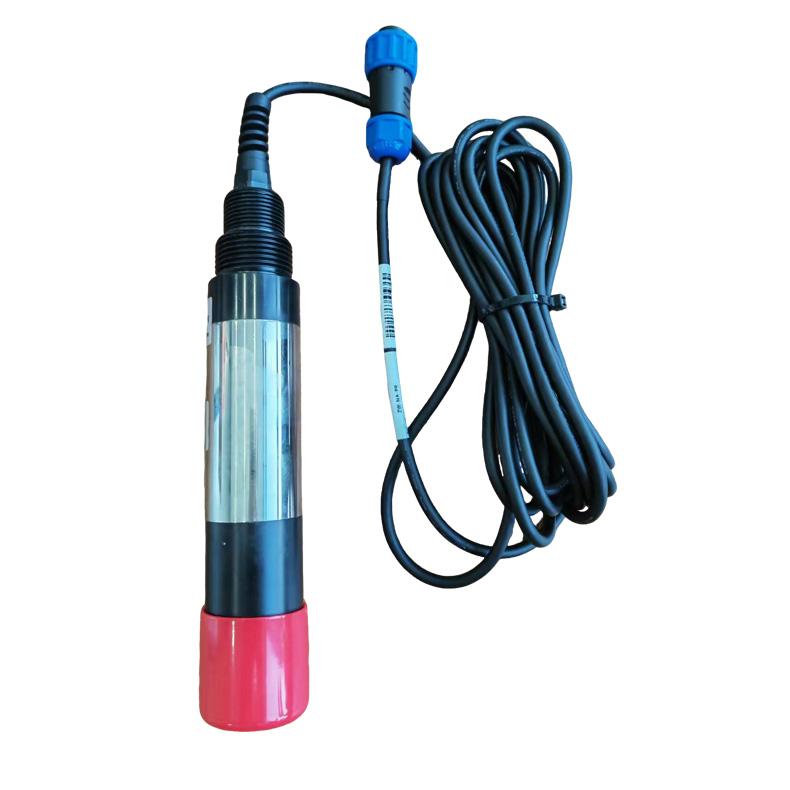

Accurate Measurement: Utilizes a sodium ion-selective electrode based on a PVC membrane, equipped with a temperature compensation function, ensuring fast, simple, accurate, and cost-effective detection.
Wireless Connectivity: Easily connects to a LoRaWAN data collector via an aviation plug, enabling stable and reliable wireless data transmission without the need for complex wiring.
Robust & Durable: Designed for various environmental conditions, meeting industrial-grade requirements for long-term online monitoring.
Typical Applications
This sensor is widely used in scenarios requiring continuous automatic analysis and monitoring of sodium ions in water, including:
Industrial wastewater treatment process monitoring
Surface water (rivers, lakes) quality monitoring
Drinking water safety indicator detection
Agricultural production (e.g., irrigation water) process control
Water Quality Solar Na+ Sensor Specification:
|
Power Supply |

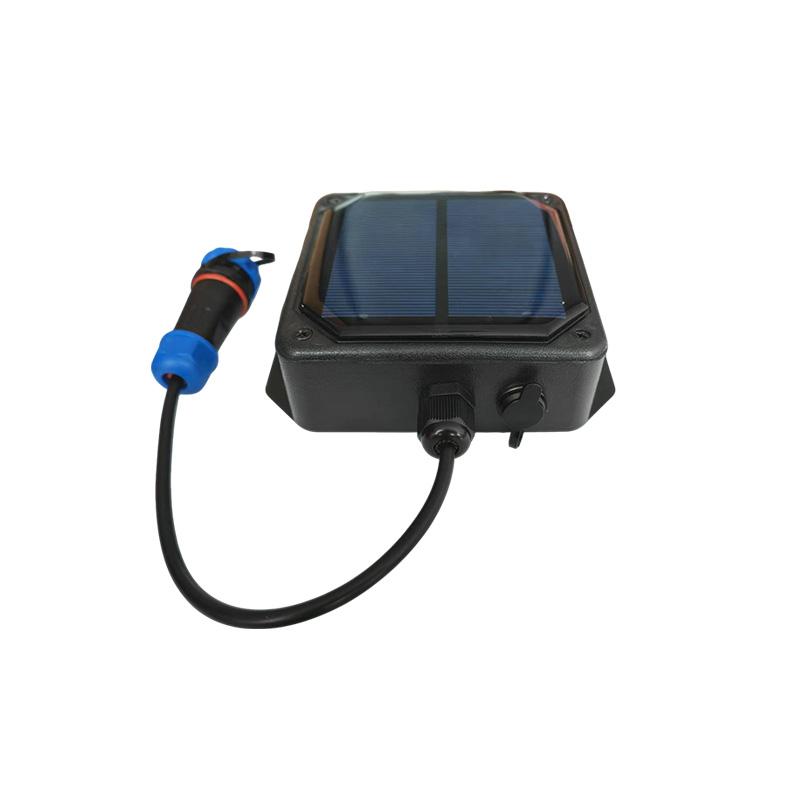

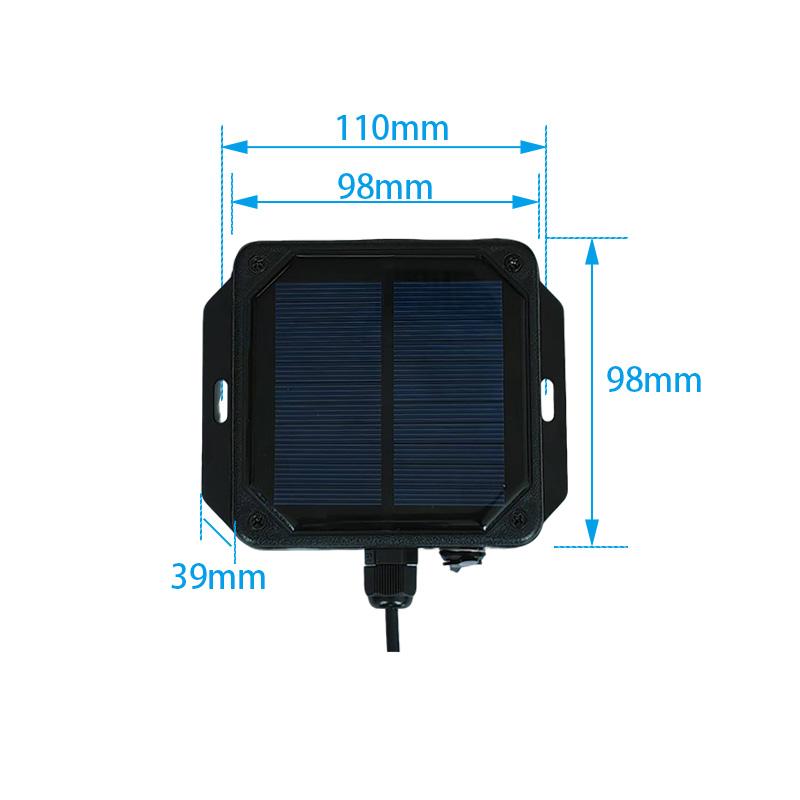

Solar Powered + Li-ion Battery （0.88W solar panel+3.7V/3400 mAh Li-ion battery） |
|
|
LW102S Weight |
230g |
|
|
Range and Resolution |
0.1~200mg/L （Other ranges are optional） |
0.001mg/L |
|
0～60℃ |
0.1℃ |
|
|
Accuracy |
±5%FS |
|
|
Temperature Compensation |
Automatic temperature compensation (Pt1000) |
|
|
Working Conditions |
0～40℃，＜0.1 MPa，9 ＜ pH |
|
|
Electrode Usage Cycle |
6-12 months |
|
|
Electrode Transmitter Line length |
Default 5m (other lengths can be customized) |
|
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
|
Mode |
OTAA Class A/C |
|
|
Reporting cycle |
30 min(Default ) |
|
|
Battery Life |
≥3 years（Based on normal use conditions） Note: Due to the high power consumption of ion sensor, it is not recommended to use short cycle data reporting. |
|
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
|
Equipment information (Reference) |
AppEUI：331341E186891989 DevEUI：aaaa202404150001 AppKey：5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
|
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Product Description:
Application:
Solar-powered sodium ion sensors are an ideal solution for outdoor water quality monitoring, widely used in rivers, lakes, reservoirs, and the inlets/outlets of wastewater treatment plants. Their solar-powered design perfectly addresses the power supply challenges of long-term field monitoring, enabling real-time continuous tracking of sodium ion levels without manual supervision, thereby providing timely and accurate data for water environmental protection and management.
Certifications：
We are the leading manufacturer and exporter of solar-powered water quality sodium ion sensors in China, with over 10 years of industry experience. Our solar sodium ion sensors are certified with CE and RoHS standards, ensuring reliability and compliance for global applications.
Production Process:
Why choose us:
