Model No.:
LW106S-CODUse:
Used for COD detection in water qualityPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
±5%;±0.3℃LoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:

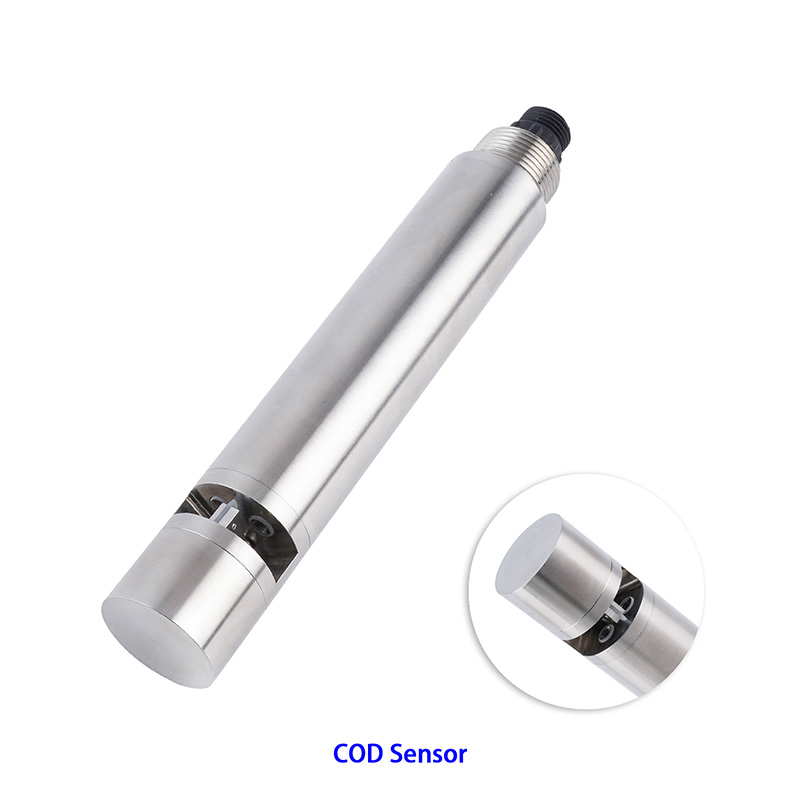

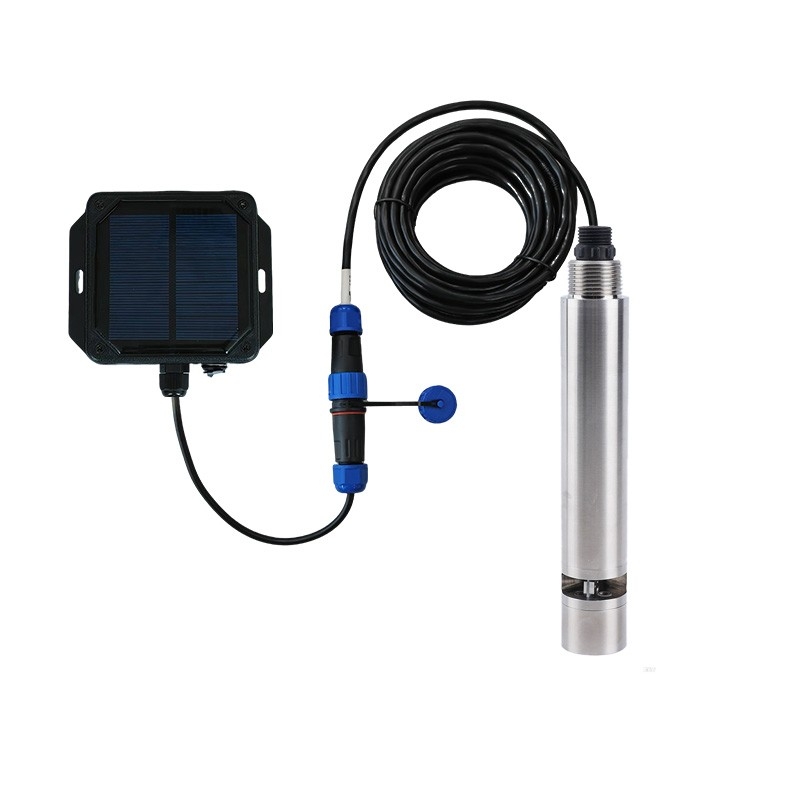

1 YearHigh precision Solar LoRaWAN Water Quality COD Sensor
This sensor integrates a solar powered system with advanced optical detection technology, capable of automatically and continuously measuring the concentration of chemical oxygen demand (COD) in water bodies. Its core advantage lies in the fact that it does not require an external power supply, achieving true low-power operation and long-term online monitoring.
It is particularly suitable for unmanned monitoring of outdoor scenes such as rivers, lakes, and sewage treatment plants. Through remote data transmission function, it provides efficient, convenient, and reliable real-time data support for water environment management and protection work.
Water Quality Solar COD Sensor Specification:
| Power Supply | Solar Powered + Li-ion Battery | |
| LW106S-COD Weight | 230g | |
|
Operating Temperature
|
0~45℃,≤0.2MPa
|
|
|
Measuring Principle
|
Dual wavelength UV absorption method
|
|
|
Range |
0~200.0 mg/L 0~200.0 NTU |
|
|
0~500.0 mg/L 0~400.0 NTU |
||
|
0~1500.0 mg/L 0~1000.0 NTU |
||
| Measurement Error |
0~500:± 5% of the reading; ±0.3℃ 0~1000: ±10%, 1000~1500:±5%;±0.3℃ |
|
|
Minimum Detectability
|
0.2mg/L(0-200mg/L)
0.4mg/L(0-500mg/L)
|
|
|
Temperature Compensation
|
Automatic temperature compensation (Pt1000)
|
|
|
Electrode usage cycle
|
18 months |
|
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
|
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
| Mode | OTAA Class A/C | |
| Reporting cycle | 30 min(Default reporting cycle) | |
| Communication Protocol |

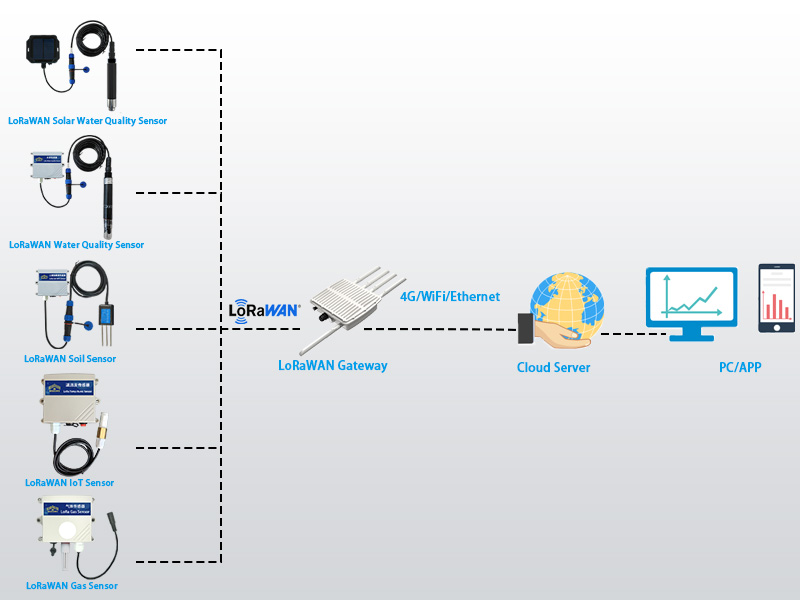

LoRaWAN,LoRa TDMA Networking
|
|
|
Equipment information (Reference) |
AppEUI:331341E186891989
DevEUI:aaaa202404150001
AppKey:5572404c696e6b4c6f52613230313823
MAC Version:LoRaWAN 1.0.3
|
|
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Product Description:
Application:
Solar COD sensors are an ideal choice for outdoor water quality monitoring and are widely used in the inlet and outlet of rivers, lakes, reservoirs, and sewage treatment plants. Its solar powered characteristics perfectly solve the power supply problem of long-term field monitoring, enabling real-time continuous monitoring of COD without human supervision, providing timely and accurate data basis for water environment protection and governance.
Certifications:
We are best solar water quality COD sensor manufacturer and exporter in China with more than 10 years. Our solar water quality COD sensor products are certified with of CE, ROHS.
Production Process:
Why choose us:
