Model No.:
LW107S-NHNUse:
Used for ammonia ion detection in water qualityPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
± 10% ± 0.5 ℃ of readingLoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:

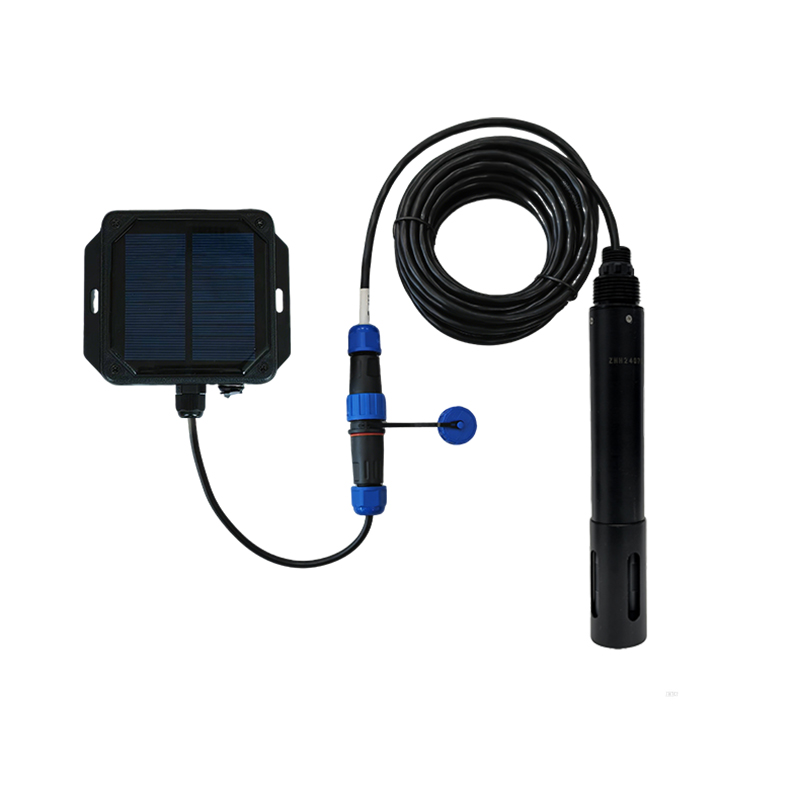

1 YearHigh Sensitivity Solar Water Quality Ammonia Nitrogen(NHN) Sensor
The solar-powered ammonia nitrogen sensor for water quality represents a cutting-edge solution in the field of intelligent environmental monitoring, driven by green and sustainable solar energy technology. It is specially developed for the real-time, continuous, and long-term online monitoring of ammonia nitrogen concentration in various water bodies. By adopting self-sufficient solar power supply, this innovative device fundamentally solves the long-standing pain points of traditional monitoring equipment, including unstable power supply in field environments, complicated and costly wiring construction, difficulties in later operation and maintenance, and limited deployment scope, effectively breaking through the constraints of traditional monitoring methods.

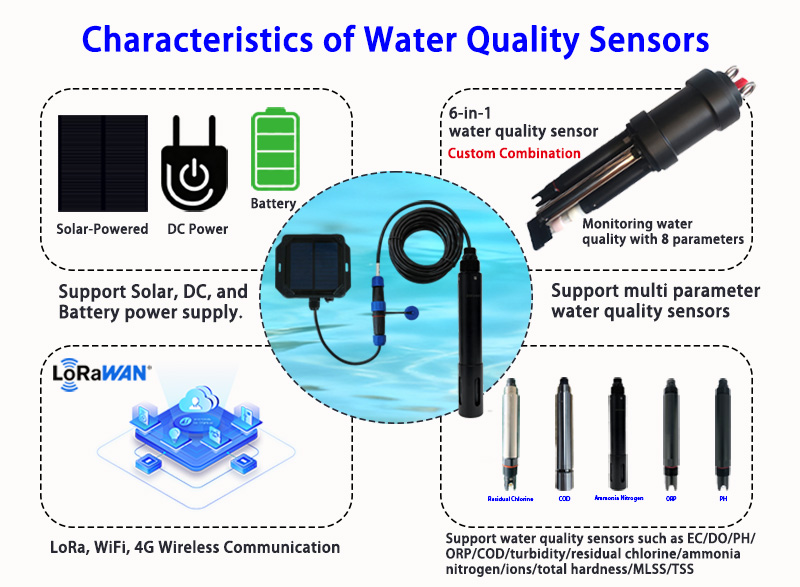

This advanced sensor integrates a high-precision ammonia nitrogen sensing unit, a high-efficiency solar charging module, a stable battery management system, long-distance wireless communication technology, and an intelligent data processing system. It can automatically complete real-time data collection, intelligent analysis, threshold judgment, and remote data transmission to the cloud monitoring platform without manual intervention. With the advantages of strong anti-interference capability, high measurement accuracy, stable operation, and long service life, it maintains reliable monitoring performance even in unattended harsh outdoor environments.
Due to its high autonomy, stability, and environmental adaptability, this solar-powered ammonia nitrogen sensor has become an ideal intelligent monitoring device for modern water environment management. It is widely used in key scenarios such as river chief system management, surface water monitoring, aquaculture water quality control, industrial wastewater discharge supervision, and rural drinking water safety protection, providing strong technical support for refined, digital, and intelligent water environment governance.
Water Quality Solar NHN Sensor Specification:
|
Power Supply |

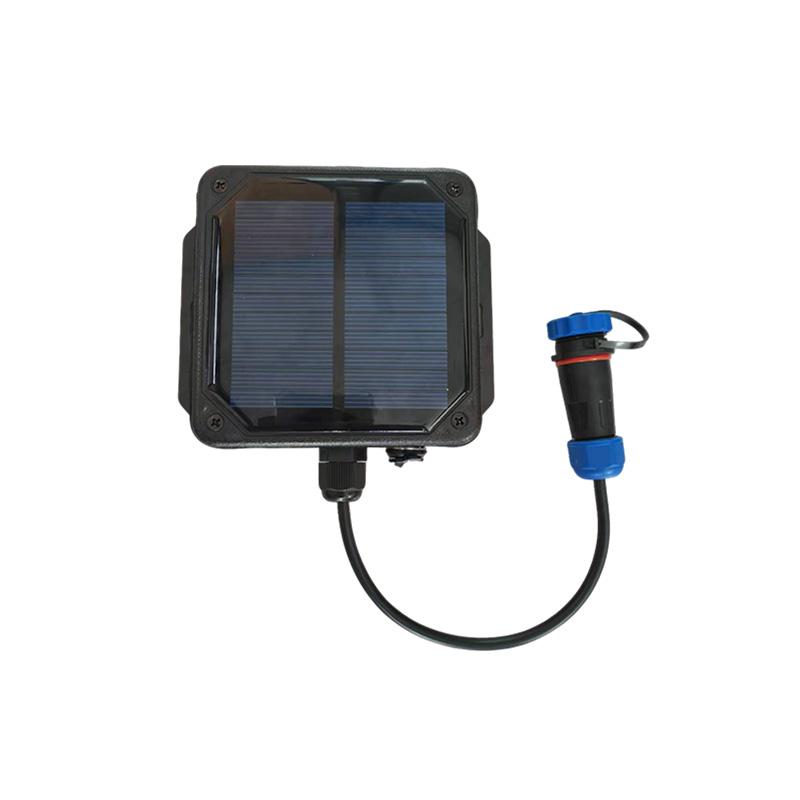

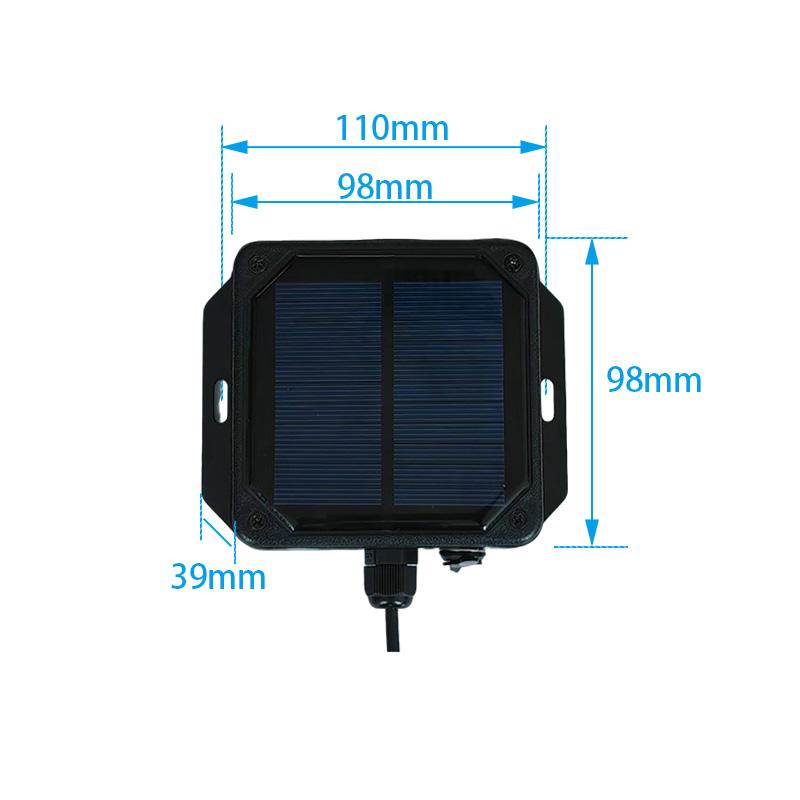

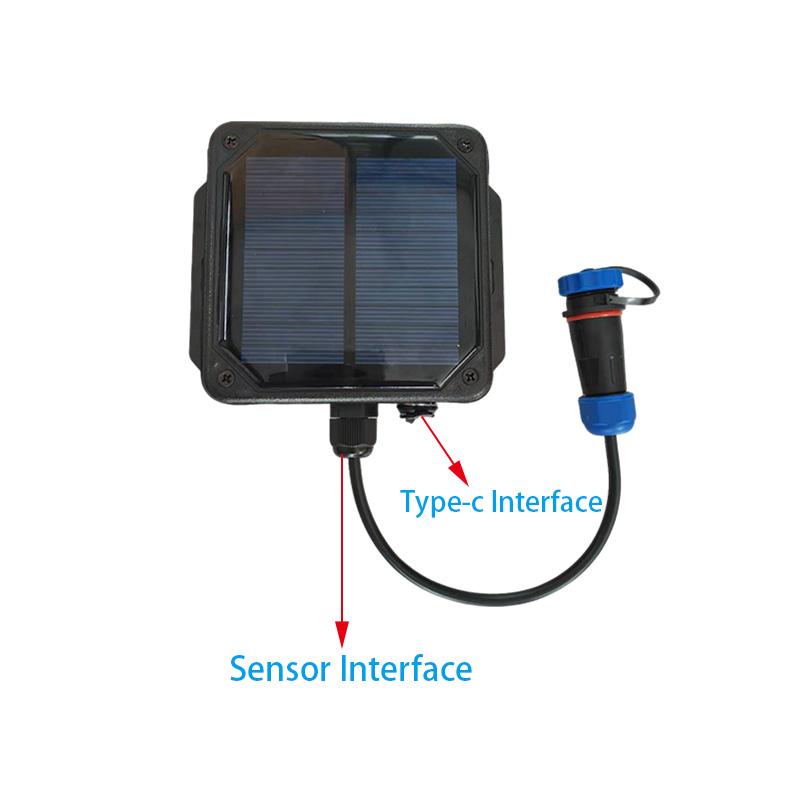

Solar Powered + Li-ion Battery (0.88W solar panel+3.7V/3400 mAh Li-ion battery) |
|
LW107S Weight |
230g |
|

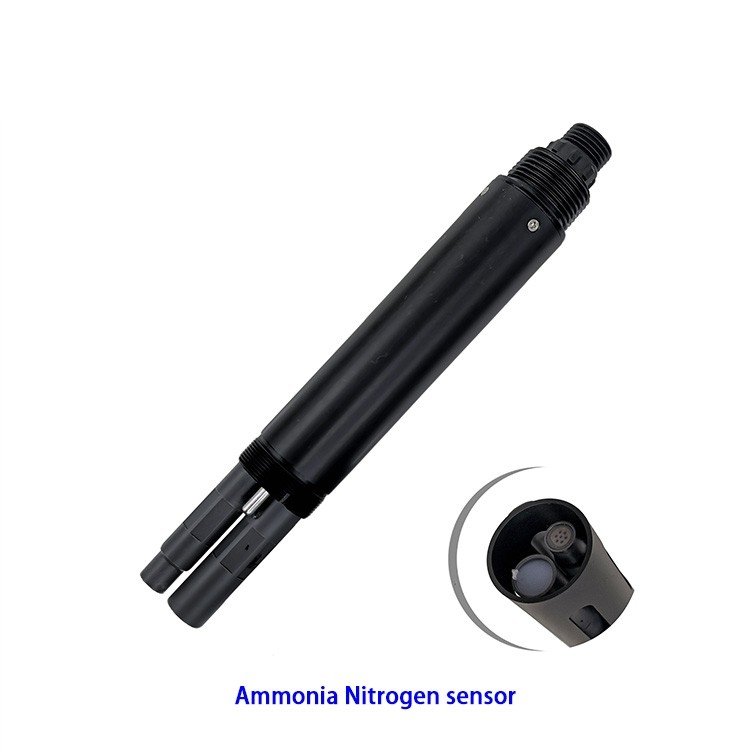

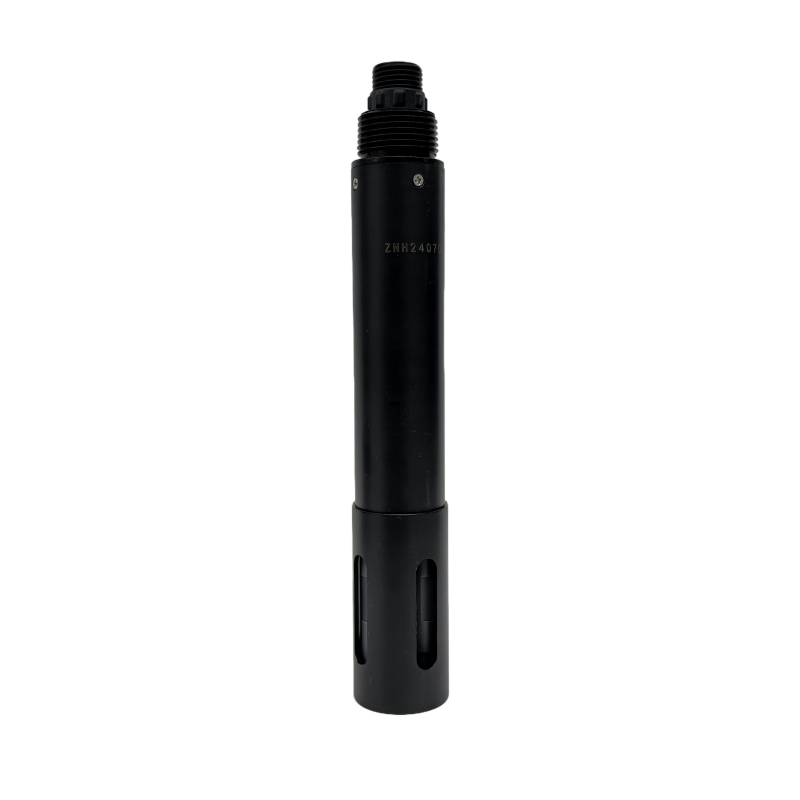

Measuring Principle |
Ion selective electrode method |
|
Working Conditions |
0~40℃,<0.1 MPa,4~10 pH |
|
Range and Resolution |
0-10mg/L,resolution: 0.01mg/L 0-100mg/L,resolution:0.01mg/L 0-1000mg/L,resolution: 0.1mg/L |
|
Accuracy |
Readings of ±10% or ±1 mg/L whichever is greater, ±0.5℃ |
|
Temperature Compensation |
Automatic temperature compensation (Pt1000) |
|
Electrode Usage Cycle |
3-6 months |
|

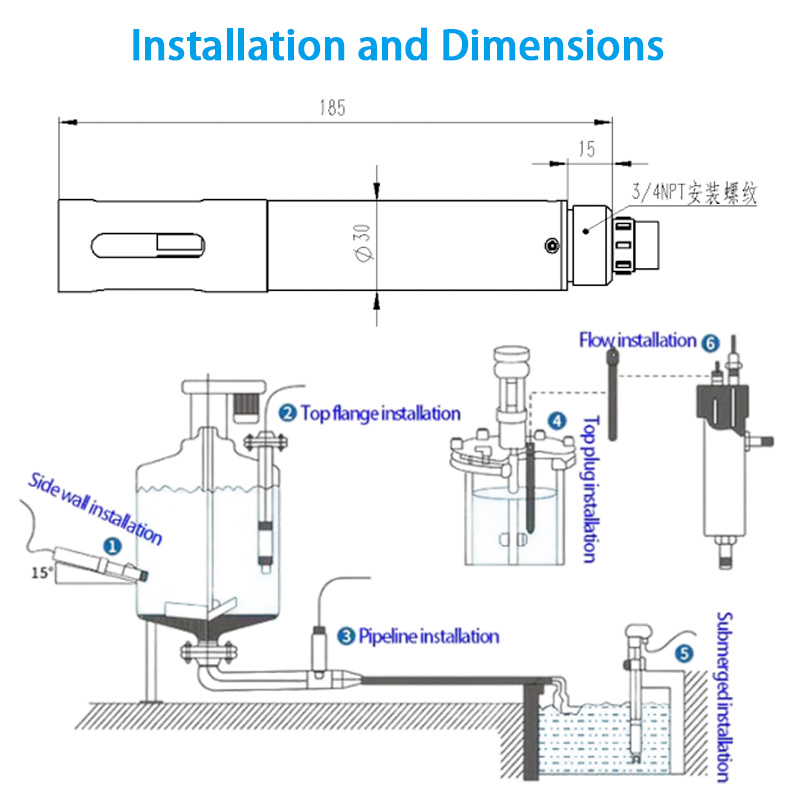

Transmitter Line length |
Default 5m (other lengths can be customized) |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A/C |
|
Reporting cycle |
30 min(Default ) |
|
Battery Life |
≥3 years(Based on normal use conditions) Note: Due to the high power consumption of ion sensor, it is not recommended to use short cycle data reporting. |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:331341E186891989 DevEUI:aaaa202404150001 AppKey:5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
Product Description:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Product Description:
Application:
The solar powered ammonia nitrogen sensor for water quality is an ideal solution for long-term unmanned monitoring of outdoor water bodies. It is widely used in the grid monitoring of river and lake water quality by environmental protection departments, early warning of water source protection, and water quality management of aquaculture ponds in smart fishing grounds. With solar power supply and wireless transmission technology, it effectively solves the problem of power supply and data acquisition for long-term monitoring in remote areas, providing real-time and reliable data support for water quality management and risk warning.
Certifications:
We are one of the best solar water quality ammonia nitrogen sensor manufacturers and exporters in China with over 10 years of experience. Our solar water quality ammonia nitrogen sensors are CE and RoHS certified.
